↵Rail SKL Clip Fastening System

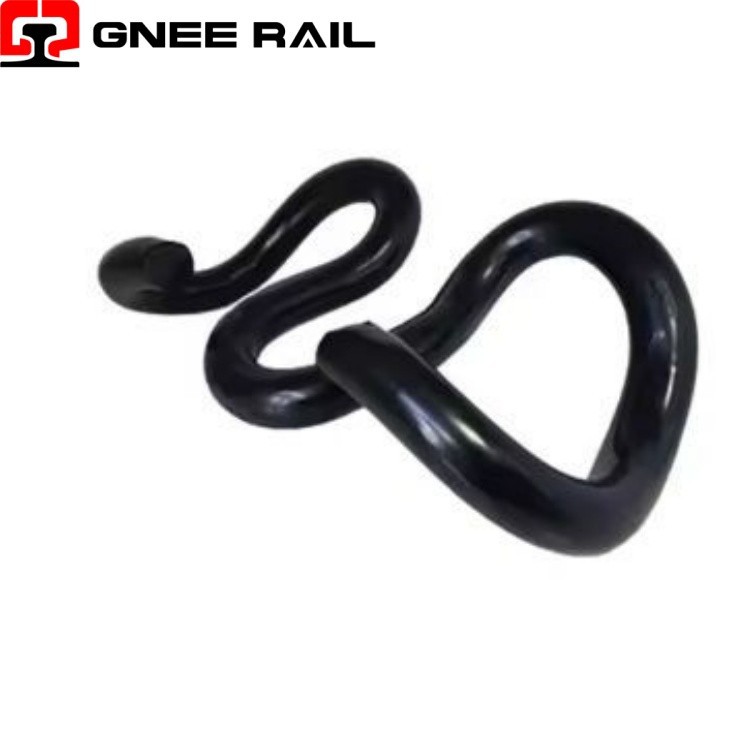

The Railway SKL Clip is a high-performance torsion spring fastener that functions as the track's "smart joint"-a precision-forged steel component capable of distinguishing between benign thermal movement and dangerous dynamic displacement, responding to each with mathematically different resistance profiles . Its distinctive omega-shaped loop (Ω) is not merely structural but a mechanical computer: the geometry is calibrated so that the clip's resistance to longitudinal rail creep is deliberately lower than its resistance to vertical lift, allowing the rail to "breathe" lengthwise while maintaining death-grip hold-down force .
Technical Specifications:
| Feature | Railway SKL Clip (This Description) | Railway SKL Clip (Previous Description) |
|---|---|---|
| Design Philosophy | "Smart joint" - directional force discrimination | "Variable-rate muscle" - progressive force response |
| Geometric Interpretation | Omega loop (Ω) as mechanical computer | Asymmetrical tension clamp |
| Primary Innovation | Vector-selective stiffness (3-4x difference) | Progressive spring rate |
| Longitudinal Behavior | Controlled slip zone (up to 8mm) | Not specifically addressed |
| Overload Protection | Mechanical stop at 85% elastic limit | Central loop contact indicator |
| Temperature Range | -40°C to +80°C (full stability) | Not specified |
| Modulus Variation | Compensated for near-constant clamping force | Not addressed |
| Leg Independence | Torsionally independent legs | Not addressed |
| Hardness Range | Not specified (focus on modulus stability) | 42-47 HRC |
| Failure Prevention | Plastic deformation barrier | Overload indication |
Installation & Maintenance Perspective:
Vector-Selective Stiffness: Finite element analysis reveals the SKL's stiffness in the vertical plane (clamping) is 3-4 times higher than its stiffness in the longitudinal plane (creep resistance)-a ratio deliberately calculated to optimize track dynamics.
Longitudinal Slip Zone: The clip maintains full vertical clamping force while permitting controlled longitudinal rail movement up to 8mm, preventing stress accumulation in continuously welded rail without compromising hold-down security.
Torsional Independence: The omega loop geometry allows the two legs to twist independently, accommodating rail seat irregularities without transferring bending moments that could crack concrete sleepers.
Maintenance & Operational Perspective
- Mechanical Stop Integration: When compressed beyond design limits, the omega loop's inner surfaces make contact, creating a metal-to-metal stop that prevents further deflection and protects the spring steel from over-stressing.
- Plastic Deformation Barrier: The stop engages at precisely 85% of the material's elastic limit, providing a 15% safety margin that guarantees the clip always operates within its recoverable deformation range.
- Installation Error Protection: Even if installed with incorrect tools or on mismatched shoulders, the mechanical stop prevents the clip from being driven to failure-it simply refuses to close further.
