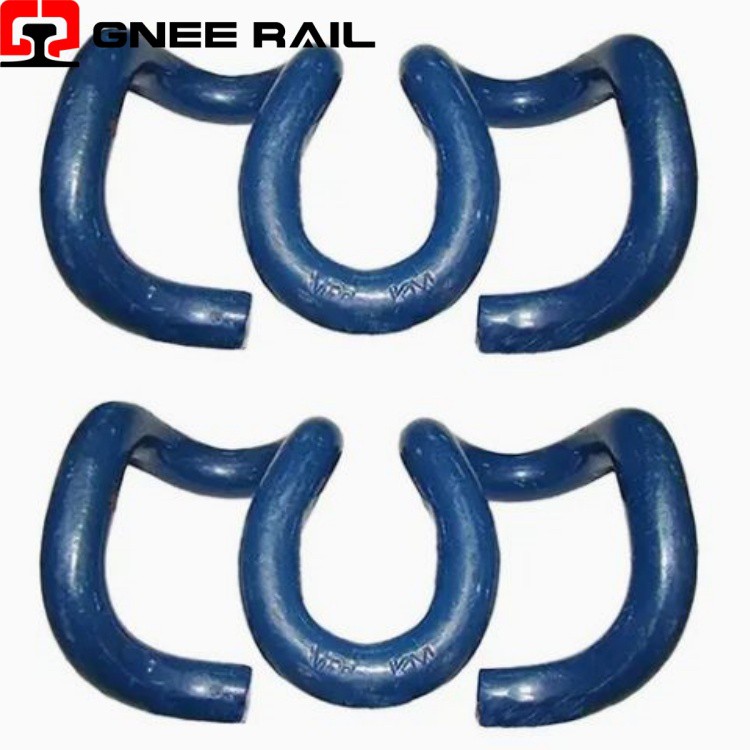

↵Rail SKL CLIP Fastening System
The Railway SKL Clip is a heavy-duty tension clamp used in rail fastening systems, characterized by its omega-shaped (Ω) geometry that provides high and consistent toe load. Unlike simpler spring clips, the SKL series features a two-turn configuration that stores significant elastic energy, making it ideal for high-speed lines, heavy-haul corridors, and applications requiring exceptional longitudinal restraint and gauge retention under extreme dynamic conditions.
Technical Specifications:
| Parameter | SKL 12 | SKL 14 | SKL 21 | SKL 24 |
|---|---|---|---|---|
| Wire Diameter | 12 mm | 14 mm | 21 mm | 24 mm |
| Toe Load Range | 7–9 kN | 9–11 kN | 11–14 kN | 14–18 kN |
| Material Grade | 52SiCr5 | 52SiCr5 | 60Si2CrA | 60Si2CrA |
| Fatigue Life | >3M cycles | >3M cycles | >5M cycles | >5M cycles |
| Application | Light rail | Metro | Mixed traffic | Heavy haul |
| Installation Tool | Manual lever | Hydraulic | Hydraulic | Hydraulic |
Installation & Maintenance Perspective:
- Omega-shaped bends create multi-stage spring action.
- Two-turn configuration maximizes elastic energy storage.
- Symmetrical design ensures balanced clamping force distribution.
- Compact profile fits within standard rail seat dimensions.
- Optimized bending radii prevent stress concentration points.
- Consistent cross-section maintains uniform material properties.
- Engineered curvature accommodates rail foot variations.
Maintenance & Operational Perspective
- Delivers 50–100% higher toe load than standard e-clips.
- Maintains clamping force under 40-ton axle loads.
- Resists longitudinal rail creep on steep gradients.
- Provides exceptional overturning resistance on curves.
- Absorbs high-energy impacts from wheel flats and rail joints.
- Performs reliably in heavy-haul corridors exceeding 100 MGT annually.
- Retains elasticity after millions of loading cycles.
