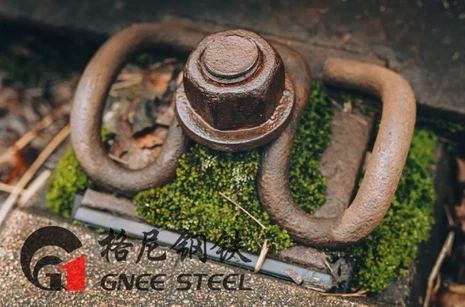

Railroad Steel Rails SKL Clips

Railway Clip is used to fasten the rails to the underlying base plate together with the concrete sleeper. A variety of different types of heavy-duty clips are used to fasten the rails to the underlying baseplate or Sleeper, one common being the E Clip, which is shaped like a stubby paperclip. Another one is the SKL Tension Clamp, which is also the most widely used type all over the world. Others like KPO Clamp and Nabla Clip, also used in different situations.

Send Inquiry

Chat Now

Description

Technical Parameters

Dynamic Correlation Between Torque & Clamping Force

Model No.	Torque Range (N·m)	Corresponding Clamping Force (kN)	Torque-Clamping Force Linear Coefficient	Clamping Force Deviation (±%)	Torque Decay Rate (10⁴ Cycles, %)	Optimal Torque Point (N·m)	Core Torque Advantage
SKL1-TC	70-110	8.2-10.5	0.065	≤5	≤3	90	Stable correlation for conventional lines
SKL3-TC	80-120	8.5-11.0	0.068	≤4	≤2.5	100	Vibration-resistant torque retention for urban rail
SKL12-TC	90-130	10.8-13.2	0.072	≤3	≤2	110	Precise correlation for high-speed rail dynamic loads
SKL14-TC	85-125	9.0-11.8	0.070	≤3.5	≤2.2	105	Impact-resistant torque stability for heavy-haul
SKL21-TC	95-135	11.5-14.0	0.075	≤2.5	≤1.8	120	Ultra-precise correlation for ballastless track

Maintenance & Replacement Efficiency & Tool Compatibility

Model No.	Replacement Time (Min/Unit)	Required Maintenance Personnel	Compatible Tools (Type/Model)	Tool Weight (kg)	Maintenance Interval Extension (vs. Standard)	Disassembly Difficulty Level	Core Maintenance Advantage
SKL1-MT	2.5-3.5	1	Manual Torque Wrench (1/2")	1.2-1.5	0% (Standard Interval)	Low (1-2/5)	Easy replacement for rural railway lines
SKL3-MT	2.0-3.0	1	Electric Torque Wrench (BL-200)	2.0-2.3	+15%	Low-Medium (2-3/5)	Quick maintenance for urban rail frequent checks
SKL12-MT	1.8-2.5	1-2	Hydraulic Torque Wrench (HTW-300)	3.5-4.0	+30%	Medium (3/5)	Efficient replacement for high-speed rail limited window
SKL14-MT	2.2-3.2	2	Pneumatic Torque Wrench (PTW-250)	2.8-3.2	+20%	Medium-High (3-4/5)	Durable design reduces heavy-haul maintenance frequency
SKL21-MT	1.5-2.2	1	Precision Electric Torque Wrench (PEW-400)	2.5-2.8	+40%	Medium (3/5)	Tool-friendly design for ballastless track efficient 运维
