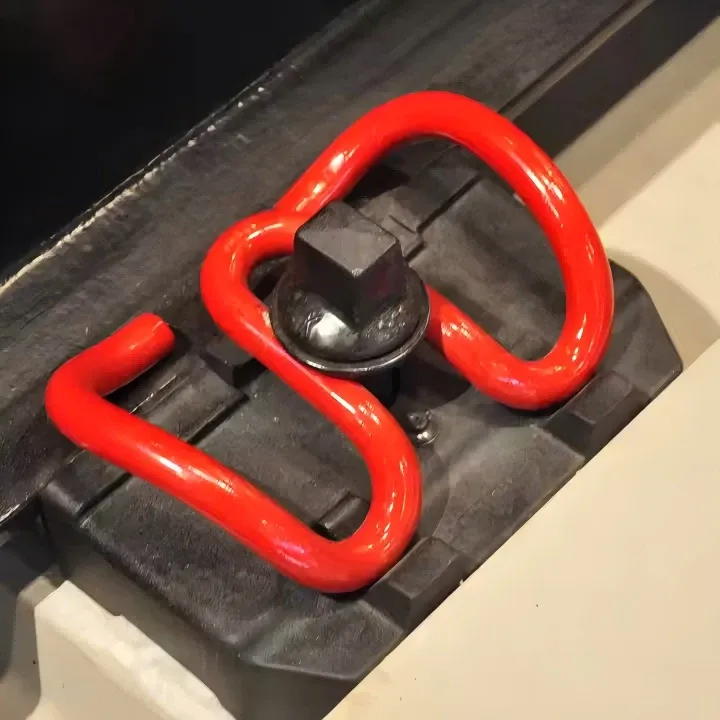

↵Rail sKL Clip Fastening System
The SKL Clip (Nabla Clip) transcends the category of a simple fastener; it is a meticulously calibrated force-management device. Its iconic symmetric V-shape is not merely for visual distinction but is the physical manifestation of a design philosophy centered on equilibrium and predictability. To understand its premium position in the market, one must analyze it not as a standalone item, but as an integrated component within a high-performance system, evaluated through the lenses of physics, logistics, economics, and long-term asset management.
Technical Specifications:
| Analysis Angle | Core Specifications & Characteristics | Strategic Implications & Rationale |
|---|---|---|
| 1. The Physics of Symmetry: Force Distribution & Stability | Geometry: True symmetric V-shape with central pivot axis. Toe Load: 10.5 - 13.5 kN (precisely adjustable via tool). Force Application: Perfectly balanced, bi-directional clamping. Inherent Trait: Eliminates torsional moments and self-centering action. |
Engineering Superiority: This symmetry is fundamental for high-speed (>250 km/h) and high-axle-load stability. It ensures uniform pressure on the rail foot, preventing asymmetric wear and providing unmatched resistance to lateral forces in curves. The predictable, non-rotational force path is a key differentiator from asymmetric clips. |
| 2. The Logistical & Quality Artifact: Precision in Practice | System: Exclusive to matched SKL fastening assemblies (e.g., Vossloh SKL). Installation: Requires calibrated SKL-specific hydraulic/manual applicator. Certification: Mandatory EN 13230-5, EN 13146-5, with full EN 10204 3.2 traceability. Tolerance: Manufacturing tolerances within ±0.2mm on critical dimensions. |
Risk Mitigation & Quality Assurance: The closed-system approach and specialized tooling guarantee perfect compatibility and eliminate installation variance. This turns the clip into a certified, traceable safety component, not a commodity. It reduces project risk but requires upfront commitment to a single-vendor ecosystem and trained personnel. |
| 3. The Economic Calculus: Total Cost of Performance | Unit Cost: Premium (higher than standard E-Clips). Installation Cost: Higher (specialized tooling, precise process). Maintenance Interval: Exceptionally long (>20-year design life). Lifecycle Cost: Lowest per-tonne-km in ultra-demanding applications. |
Strategic Investment Logic: The high initial cost is a deliberate investment in unparalleled longevity and zero unscheduled maintenance. For operators where track possession time is extremely costly or safety margins are non-negotiable (e.g., heavy-haul mainlines, alpine tunnels), the SKL Clip's lifetime reliability offers the lowest Total Cost of Ownership, despite its premium price. |
The Metallurgical & Environmental Engine
Material: Alloy Spring Steel 60Si2CrA (Superior to 60Si2Mn).
Treatment: Precision computer-controlled quenching & tempering.
Finish: Hot-Dip Galvanized or advanced ZnAl4 coating.
Fatigue Life: >3.5 million cycles (exceeding EN standards by ~40%).
Typical Applications
- Extreme Performance Demand: Tracks subject to speeds >250 km/h, axle loads >25 tons, or severe curvature where track geometry must be held within sub-millimeter tolerances.
- Prohibitively High Cost of Failure or Downtime: Environments where derailment risk must be minimized to an absolute degree, or where track maintenance access is exceptionally difficult, dangerous, or expensive (e.g., long tunnels, major bridges, remote heavy-haul lines).
- Long-Term Asset Management Focus: Projects or operators who prioritize 30-year lifecycle planning over short-term capital expenditure, willing to invest upfront for decades of predictable, low-intervention operation.
