Rail Dog Spike Fastening System

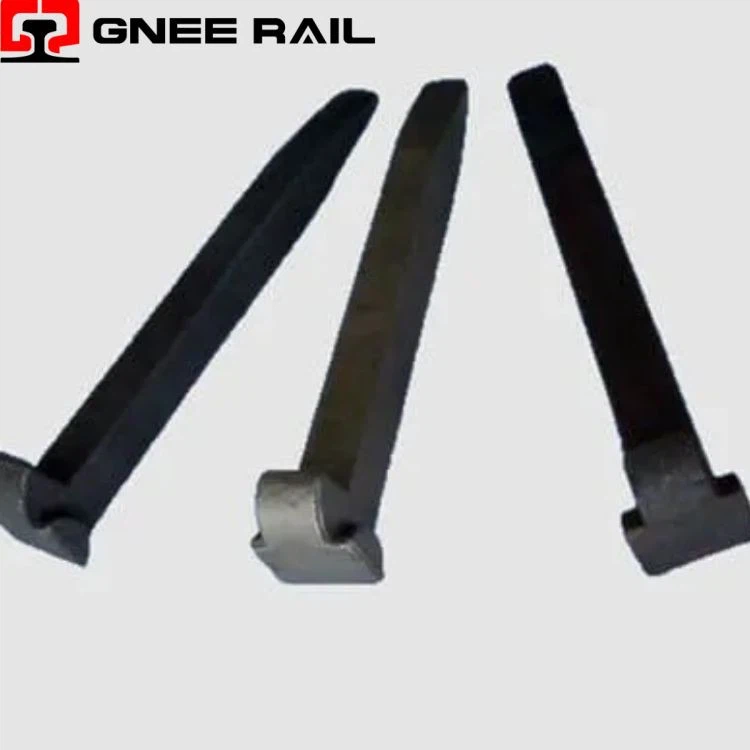

The Railway Dog Spike is a traditional, L-shaped steel fastener engineered to secure steel rails to wooden sleepers (ties) by utilizing a wedge-action design that, when driven, clamps the rail base to the sleeper while resisting vertical lift and lateral track movement . Its simple yet effective geometry allows for rapid installation with basic tooling, making it a cost-effective and historically proven component primarily used in light rail, industrial sidings, and heritage lines where wooden sleeper infrastructure is maintained .
Technical Specifications:
| Feature | Standard Carbon Steel Spike | High-Grade/Protected Spike |
|---|---|---|
| Typical Material | Q235 Mild/Low-Carbon Steel | 45# / 55# High-Carbon or Alloy Steel |
| Corrosion Resistance | Low (Plain/Oiled surface, prone to rust) | High (Hot-Dip Galvanized / Zinc Coated) |
| Load Capacity | Standard (Suitable for light rail, low traffic) | High (Grade 8.8+ for heavy-haul, high traffic) |
| Primary Application | Industrial sidings, forestry lines, mining | Mainline wooden sleeper sections, high-speed zones |
| Lifecycle Cost | Lower upfront, higher maintenance | Higher upfront, lower long-term maintenance |
Installation & Maintenance Perspective:
- Wedge-Action Grip: The dog spike features an offset head with a sloped underside that matches the angle of the rail base, creating a powerful wedging effect that holds the rail down firmly against the sleeper .
- Chisel-Point Drive: It is forged with a flat-edged, chisel-like point that is driven perpendicular to the wood grain of the sleeper. This specific orientation maximizes the spike's resistance to loosening caused by dynamic train vibrations .
- Shear and Friction Resistance: The robust square or conical shank is designed primarily to withstand significant shear forces and maintain friction within the sleeper, ensuring lateral track stability (gauge retention) under load .
Maintenance & Operational Perspective
- Corrosion Protection Systems: To combat environmental degradation, spikes are treated with protective coatings ranging from basic plain oiling to more robust hot-dip galvanizing (HDG), which is essential for humid or coastal environments to prevent section loss due to rust .
- Grade Classification: The strength and performance are often categorized by grades (e.g., 4.6, 5.6), which indicate the tensile and yield strength of the fastener, allowing engineers to select the appropriate grade based on traffic density and axle loads .
- Heat Treatment Processes: Advanced manufacturing includes heat treatment and prestressing techniques that enhance the spike's fatigue resistance, allowing it to endure millions of stress cycles without cracking .
