Rail Dog Spike Fastening System

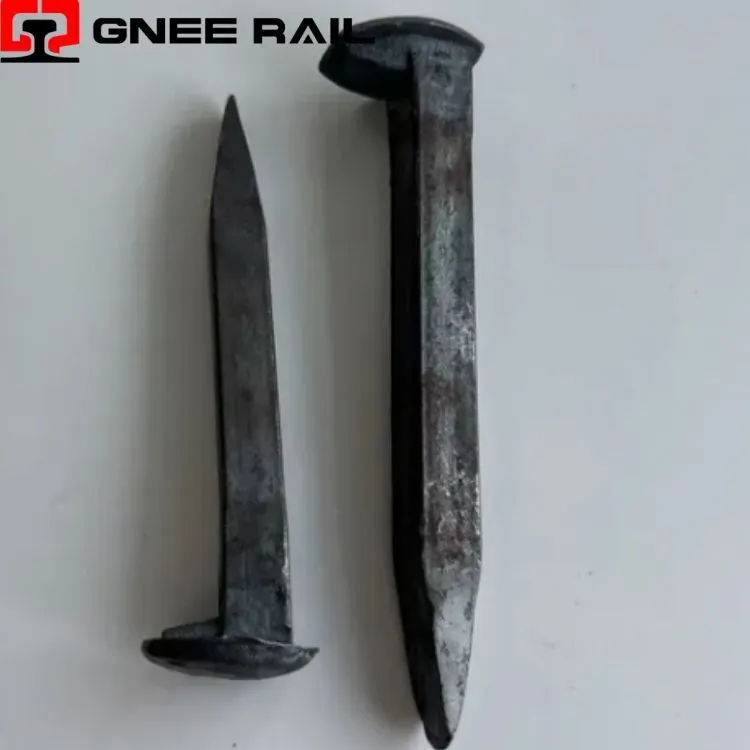

The Railway Dog Spike is a heavy-duty, forged steel fastening device characterized by its J-shaped head and tapered, rectangular cross-section, engineered to penetrate wooden sleepers and anchor the rail base through compressive force and friction. Unlike threaded fasteners, its installation relies on displacement rather than rotation, where the spike's mass and hardness allow it to be driven hydraulically or manually, creating a permanent, high-strength interference fit that maintains track gauge and resists the lateral thrust and vertical acceleration imparted by passing rolling stock .
Technical Specifications:
| Parameter | Light Duty / Industrial Spike | Mainline / Heavy Haul Spike |
|---|---|---|
| Typical Steel Composition | Low-Carbon (AISI 1010-1020) | Medium-Carbon / Micro-Alloyed (AISI 1045+) |
| Head Configuration | Standard J-Hook Profile | Reinforced, High-Clamp Profile |
| Corrosion Protection | Asphaltic coating or bare steel | Hot-Dip Galvanized (HDG) or Zinc/Aluminum coating |
| Installation Method | Manual spike maul or hydraulic driver | High-frequency hydraulic spike drivers |
| Typical Service Life | 10-15 years (moderate conditions) | 25-40 years (with maintenance & coatings) |
Installation & Maintenance Perspective:
- Head Profile and Rail Interface: The overhanging head features a precisely angled bearing surface that contacts the rail foot at a specific point, applying a downward clamping force that counteracts rail rollover tendencies induced by wheel loads .
- Rectangular Shank Geometry: The shank is typically forged with a rectangular cross-section, which provides greater surface area contact with the wood grain compared to round spikes, significantly improving resistance to rotational loosening under dynamic track vibration .
- Penetration Depth and Toe Pressure: The spike's length is calculated to ensure the tapered tip embeds below the neutral axis of the sleeper, while the head's underside exerts "toe pressure" on the rail base, creating a stiff, vibration-damping mechanical connection .
Maintenance & Operational Perspective
- Steel Grade Selection: Spikes destined for heavy-haul corridors are often manufactured from micro-alloyed steels containing elements like vanadium or niobium, which refine grain structure and enhance yield strength without requiring additional heat treatment .
- Hot Forging Process: The heads are formed through an automated hot-forging process where steel bars are heated to forging temperature and upset under high pressure, aligning the grain flow to follow the shape of the spike for optimal structural integrity .
- Hardness Profiling: Quality manufacturing ensures a specific hardness gradient where the driven point is sufficiently hard to penetrate wood without bending, yet the head retains enough toughness to withstand repeated impacts from mechanical spikers without mushrooming .
