Railway Dog Spikes: Technical Data Sheet
| Aspect | Description & Details |
|---|---|

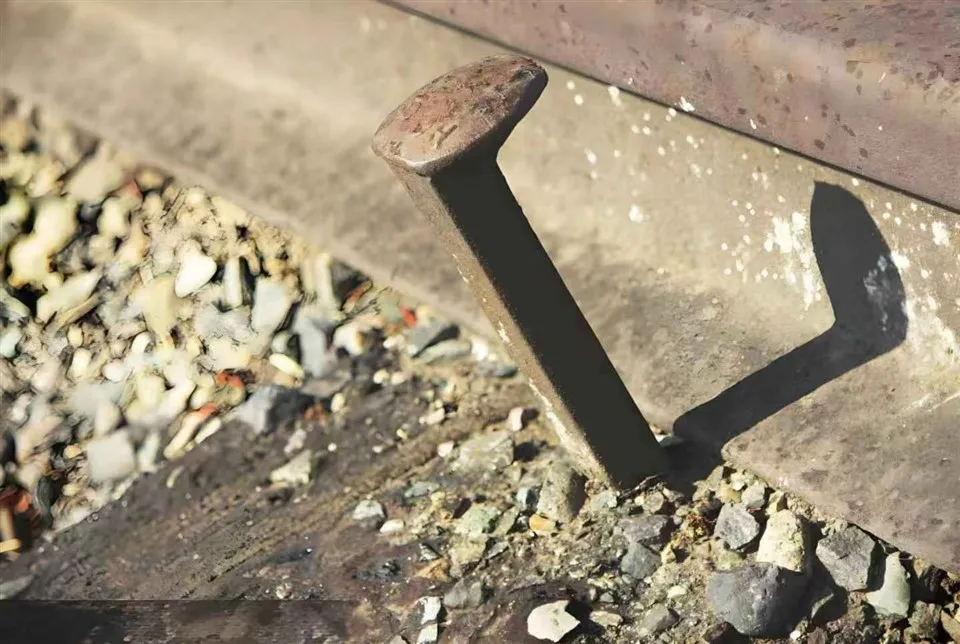

| Product Name | Dog Spike (Also commonly known as Track Spike or Cut Spike) |
| Primary Function | To secure flat-footed railway rails to wooden sleepers (ties), preventing longitudinal and lateral movement. |
| Key Features | - Simple and Robust Design: A sturdy, wedge-shaped spike. - Anchor Grip: The chisel-shaped point and dog head are designed to grip the wood fibres securely. - Economical: Low-cost and simple to manufacture. - Historical Use: One of the earliest and most traditional rail fastening methods. |
| Main Applications | - Traditional Track: On secondary lines, branch lines, and sidings with wooden sleepers. - Historical Railways: Heritage and museum railways maintaining period accuracy. - Industrial Track: In mining, logging, and industrial yards with low axle loads. |
Comparison with Modern Fastening Systems
| Feature | Dog Spike System | Elastic Clip System (e.g., Pandrol, Nabla) |
|---|---|---|
| Fastening Principle | Friction Grip: Relies on friction between spike and wood. | Elastic Clamp: Applies a consistent spring force to the rail foot. |
| Gauge Holding | Poor: Prone to gauge widening under dynamic loads. Requires frequent maintenance. | Excellent: Maintains gauge precisely under high dynamic loads. |
| Installation | Manual: Driven with a spike maul or automated spike driver. | Tool-Dependent: Requires specialized tools (e.g., nipping tool, wrench). |
| Application | Wooden Sleepers only. | Concrete, Steel, and Wooden Sleepers. |
| Maintenance | High: Can work loose over time, requiring re-driving. | Low: Designed to |
Advantages & Disadvantages
| Advantages | Disadvantages |
|---|---|
| ✅ Simplicity: Simple design with no complex parts. | ❌ Poor Gauge Holding: Prone to causing gauge widening under load. |
| ✅ Low Cost: Inexpensive to manufacture. | ❌ High Maintenance: Requires frequent inspection and re-driving to remain tight. |
| ✅ Ease of Installation: Can be installed with basic tools. | ❌ Damages Sleepers: Repeated driving and re-driving splits and damages wooden sleepers. |
| ✅ Proven History: A long history of use in railway development. | ❌ Limited Application: Only suitable for wooden sleepers with flat-bottom rail. |
