↵Rail Fishplate Fastening System

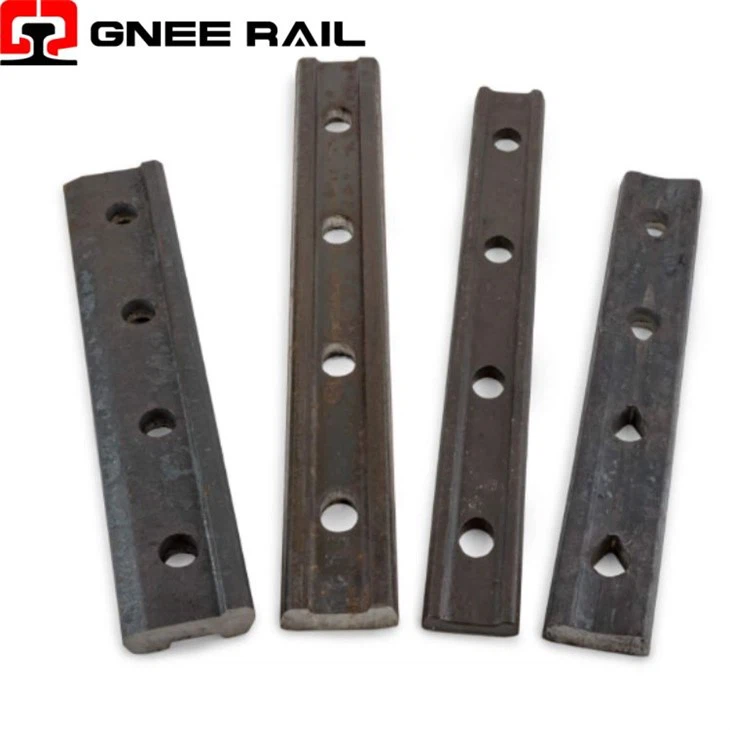

A Railway Fishplate, known formally as a joint bar or splice bar, is a critical rail joining component designed to connect two adjacent rail ends at a butt joint. Typically manufactured as a pair of matching steel bars, they are bolted firmly to the web of the rails on both sides, spanning the gap between rail ends. Their primary function is to transmit bending moments and shear forces across the joint, maintaining rail alignment and continuity while allowing for controlled thermal expansion. Fishplates are engineered to match the rail profile precisely and are essential for maintaining track integrity at locations where continuous welded rail (CWR) is not used, such as at insulated joints, expansion joints, and in temporary or repair scenarios.
Technical Specifications:
| Perspective | Core Function | Critical Quality Focus | Primary Maintenance Task | Dominant Failure Mechanism | Replacement Trigger |
|---|---|---|---|---|---|
| Utility | Force Transfer at Rail Joints | Precision matching to rail profile | Bolt tension maintenance | Fatigue cracking from cyclic bending | Excessive bolt hole wear or detected cracks |
| Production | Profile Accuracy & Material Integrity | Dimensional tolerances and hole alignment | Proper heat treatment for wear/impact balance | Material defects or improper hardening | Impact damage or loss of insulating properties |
| Maintenance | Sustained Joint Integrity & Alignment | Bolt tightness and crack-free structure | Regular NDT and bolt re-torquing | Vibration-induced bolt loosening | Tonnage-based schedule or condition-based defect |
Functional & Engineering Perspective
Wear and Deformation Assessment: Inspection for wear on the bearing surfaces against the rail web, deformation (bending) of the plates, and elongation or "ovaling" of bolt holes, which indicate excessive load and require replacement.
Insulated Joint Integrity Checks: For insulated fishplates, maintenance includes checking for cracked or degraded insulating components, testing electrical resistance, and ensuring no metal-to-metal contact creates a signaling short circuit.
Preventative Replacement Based on Traffic Tonnage: Fishplates in mainline service are often replaced on a preventative schedule based on cumulative Megatonnes (MGT) of traffic, as fatigue life is closely correlated with load cycles, even before visible cracks appear.
Maintenance & Operational Perspective
- Hole Drilling and Counterboring Precision: Bolt hole locations are drilled with high precision to ensure perfect alignment between both plates and the rail's pre-drilled holes. Counterbores are machined to accommodate bolt heads and nuts flush with or below the plate surface.
- Material Grade and Toughness Specification: Made from medium-carbon or micro-alloyed steel with defined yield and impact toughness properties, often exceeding the base rail steel's toughness to ensure the joint is not the weakest link.
- Heat Treatment for Durability: Undergo controlled quenching and tempering to achieve an optimal hardness profile-hard enough to resist wear and deformation at the bolt holes and bearing surfaces, yet tough enough to resist impact fracture.
Gnee Professional supplier
