Products Description
This 24kg rail can be used in forest areas and mining areas to lay temporary transport routes to meet the transportation needs of complex terrain such as forest areas and mining areas.
It can also be used in factories and construction sites to lay lines for light locomotives to meet the material handling needs inside factories or construction sites.
It is also suitable for light locomotive lines and special rails for 5 to 10 tons of cranes, overhead cranes, and cranes.
Basic specifications
Weight: 24 kg per meter.
Height: 107 mm
Bottom width: 92 mm
Head width: 51 mm
Waist thickness: 10.9 mm

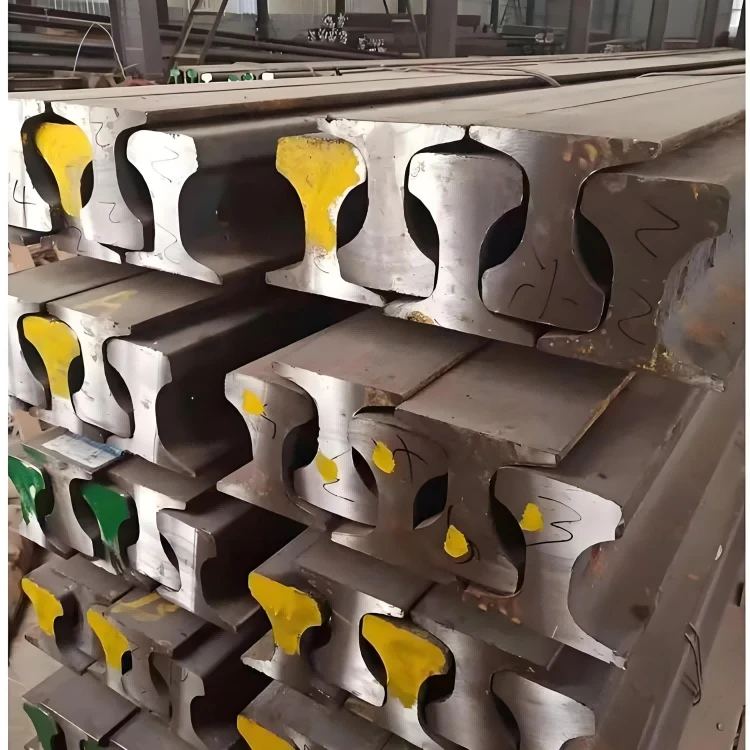

Carbon Steel Rail 24kg
| type | weight (kg/m) | material | length (m) |
| 24kg | 24.46 | Q235/55Q | 6-10m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thickness (mm) |
| 107 | 92 | 51 | 10.90 |
Other Features
Steel Rails that meet Chinese standards generally have high strength and wear resistance.
1.High strength:
National standard rails are made of high-quality steel, with high tensile strength and yield strength, and can withstand the heavy pressure and impact of trains.
2.Wear resistance:
The surface of the rails has been specially treated to have good wear resistance, which can reduce wear and extend service life.
3.High straightness requirements:
National standard rails have strict requirements on straightness to ensure that trains can run smoothly at high speeds and reduce vibration and noise.
4.Good stability:
The rails have good stability and can resist interference and damage from the external environment, keeping the geometry and size of the track unchanged.
Light Steel Rail
| Light Steel Rail | size | Rail Height | Bottom Width | Head Width | Web Thickness | Weight kg/m |
| 8kg | 65 | 54 | 25 | 7 | 8.42 | |
| 12kg | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 | |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
| 18kg | 90 | 80 | 40 | 10 | 18.06 | |
| 22kg | 93.66 | 93.66 | 50.8 | 10.72 | 22.3 | |
| 24kg | 107 | 92 | 51 | 10.9 | 24.46 | |
| 30kg | 107.95 | 107.95 | 60.33 | 12.3 | 30.1 |
FAQ
Will steel rails rust?
Answer: Rails will rust when exposed to wet or corrosive environments. To prevent rust, anti-corrosion treatments are usually applied, such as anti-corrosion coatings or galvanizing.
How are rails inspected and maintained?
Answer: Inspection and maintenance of rails includes regular inspection of the rails for cracks, wear or corrosion, inspection of the rail surface using rail wear detection equipment, and timely replacement or repair.
Do rails need to be replaced regularly?
Answer: Yes, rails will wear or become damaged over time, especially in railway systems that are used frequently. The decision to replace them needs to be made based on usage and regular inspection results.
