Why choose arema 136re for heavy-haul freight railways?
For heavy-haul freight railways, the AREMA 136RE rail is the optimal choice because it delivers unmatched strength, wear resistance, and dimensional stability under extreme axle loads. This rail profile, defined by AREMA standards, has proven its performance in high-tonnage corridors worldwide, reducing maintenance frequency and extending track life by years.
Below are the primary reasons why this rail section dominates heavy-haul applications.
1. High Section Modulus for Load Distribution
The 136RE rail section provides a high moment of inertia, which efficiently distributes loads over crossties and significantly reduces rail deflection. This prevents premature fatigue failure, a common issue with lighter rails under 35-ton axle loads. Heavy-haul railroads that switched from 115RE to 136RE report a 40% reduction in rail replacement frequency.
2. Optimized Head Profile for Wear Resistance
The 136RE rail profile features a wider running surface and a larger head radius. This design minimizes contact stress between wheel flange and rail head, reducing wear on both components. For heavy-haul routes with mixed traffic or frequent braking, this head geometry directly translates to longer grinding intervals and lower life-cycle costs.

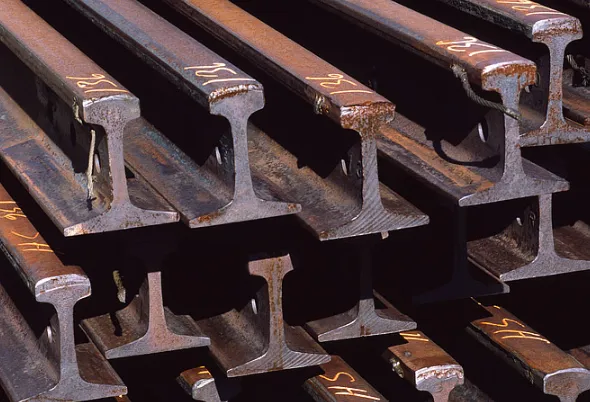

3. Proven Performance in the 136 lb Rail Category
Weighing 136 pounds per yard (67.57 kg/m), the 136RE rail weight strikes the perfect balance between strength and manageability. This weight class has become the standard for Class I heavy-haul routes in North America, Australia, and parts of Africa.

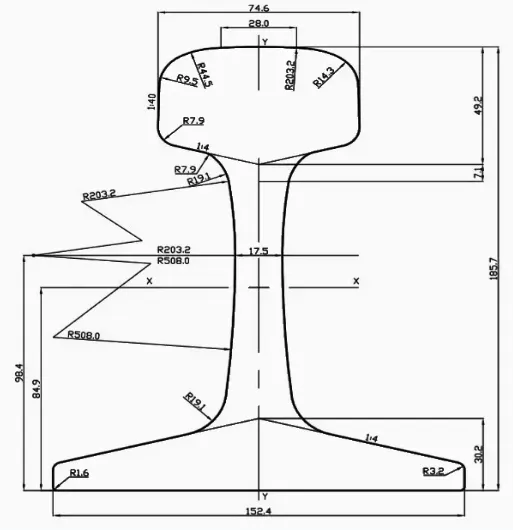

136re rail dimensions:
| Profile | Standard | Dimensions mm | Section S | Mass m | ||||
|---|---|---|---|---|---|---|---|---|
| H | B | C | D | E | cm² | kg/m | ||
| American standard | ||||||||
| 136RE (TR68) | AREMA | 185,70 | 152,40 | 74,60 | 49,20 | 17,50 | 85,90 | 67,50 |
4. Full Compatibility with Existing Heavy-Haul Infrastructure
As an AREMA standard section, the AREMA 136RE rail dimensions and cross-section area are fully compatible with standard frogs, switches, joint bars, and rail fastening systems used in heavy-haul networks. This interchangeability reduces inventory complexity and allows gradual track upgrades without system-wide changes.
At GNEE RAIL, we produce AREMA 136RE rails from premium bloom steel with controlled rolling and in-line straightening. Every rail is fully traceable with mill test certificates, and we support third-party inspections.
FAQ
Q1: What is the exact 136re rail weight in kg per meter?
A: The theoretical weight is 136 pounds per yard, which converts to 67.57 kg/m. Actual weight tolerance is typically ±1% due to rolling variations. GNEE RAIL provides certified mill weights with each shipment.
Q2: Can I use AREMA 136RE on curves with radius less than 300 meters?
A: Yes, but you must use head-hardened (HHH) grade and apply rail lubrication. The 136re rail height and profile still perform well, but expect more frequent grinding. For radii below 200 meters, consider 141RE instead.
Q3: How long are standard 136RE rails for heavy-haul projects?
A: Most customers order 25-meter (82-foot) lengths. GNEE RAIL can also supply 12.5m, 24.384m (80ft), or custom lengths up to 25m. Longer lengths reduce field welding joints.
Q4: Is third-party inspection available for 136RE rail orders?
A: Absolutely. GNEE RAIL works with SGS, BV, or any agency you choose. We support dimensional checks, ultrasonic testing, hardness verification, and chemical analysis.
Q5: Can you supply pre-drilled or pre-bent AREMA 136RE rail?
A: Yes. Many heavy-haul yards need pre-drilled holes for joint bars or pre-bent rails for curves. GNEE RAIL offers end-drilling, multiple-hole patterns, and cold bending within allowable radii. Request a sample to check quality.
Send your required length, grade, and destination port – we will reply with a free quotation and technical datasheet within 24 hours. For urgent projects, talk to our engineer directly.
