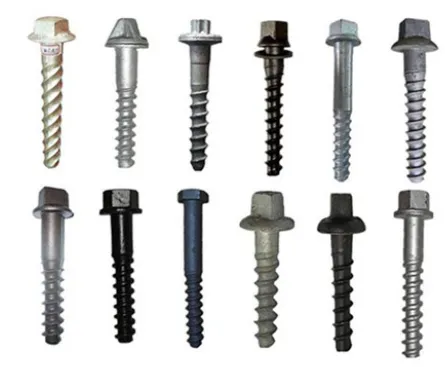

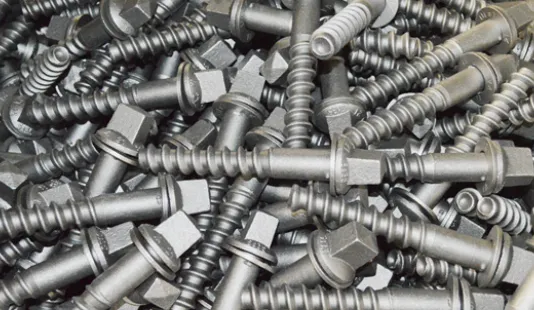

Railway Sleeper Screws Spike is a key component in high-strength rail fastening systems, specifically designed for heavy-duty railway tracks, metro lines, and high-load rail systems. Manufactured from premium carbon steel and enhanced through heat treatment and protective surface coating, these screw spikes deliver exceptional tensile strength and fatigue resistance, maintaining reliable sleeper connections under vibration and stress. GNEE RAIL is a professional supplier offering a full range of high-strength screw spikes and complete fastening systems.
Made from high carbon steel or medium carbon alloy steel, such as 45#, 40Cr, or 35CrMo. After quenching and tempering, the material achieves a hardness level of HRC 40–45 and superior impact resistance, ensuring reliable long-term fastening performance under heavy loads.
Available coatings include Hot-Dip Galvanizing (HDG), Oxide Black, Zinc Plating, and Dacromet Coating, all of which improve corrosion resistance. The HDG finish, in particular, provides outstanding protection against salt spray and chemical corrosion, extending the lifespan of track fastening systems.
Railway Sleeper Screws Spike Specification
| Brand | GNEE RAIL | |||
| Name | Concrete Sleeper Screw Spike | |||
| Type | Ss5.-150 | V20-135 | ||
| Ss8-140 | V23-115 | |||
| Ss8-150 | V23-135 | |||
| Ss8-160 | V23-155 | |||
| Ss23-160 | V23-215 | |||
| Ss25.-165 | V26-115 | |||
| Ss35.-161 | ||||
| Or the type by customers' drawings | ||||
| Grade | 4.6 | 5.6 | 8.8 | 10.9 |
| Material | Q235 | 35# | 45# | 40Cr |
| Mechanical properties | Tensile strength: ≥400Mpa | Tensile strength:≥500Mpa | Tensile strength:≥800Mpa | Tensile strength:≥1000Mpa |
| Yield strength:≥240Mpa | Yield strength:≥300Mpa | Yield strength:≥640Mpa | Yield strength:≥900Mpa | |
| Elongation:≥22% | Elongation:≥20% | Elongation:≥12% | Elongation:≥9% | |
| Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | Cold bending: 90 degree without crack | |
| Surface | plain (oiled), Oxide black, Zinc, HDG, wax, bitumen, Dacromet, Sherardizing | |||
| Standard refers | ISO898-1, UIC864-1, and NF F500-50 | |||
GNEE RAIL offers different kinds of railway fasteners to meet client's requirements, such as Elastic Rail Clip and Clamp, Rail Screw Spike, Plastic Dowel, High Tensile Track Bolt with Nut, Rail Base(Tie) Plate, Rail Fish Plate, Railway Shoulder(Insert), Fish Bolt, Railroad Rubber and EVA Pad, etc. Samples and drawings provided by customer, we will manufacture qualified products accordingly.
