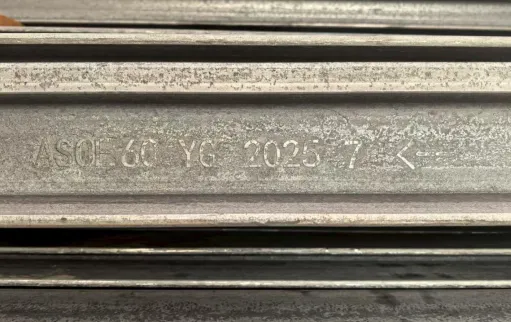

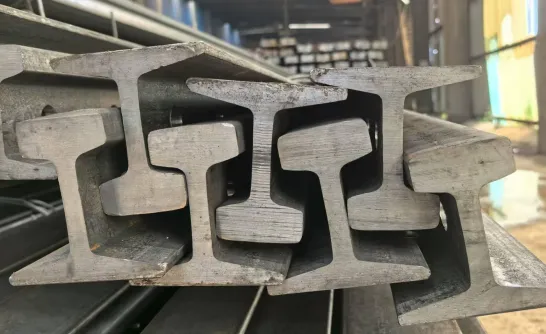

Rail ASCE 60, also known as 60 lb ASCE rail, is manufactured from high-strength carbon steel designed to meet the requirements of industrial and light railway systems. While the asce 60 rail dimensions and 60 lbs rail weight per meter (≈29.8 kg/m) define its structure, the material determines its durability, wear resistance, and service life.
60 lbs rail dimensions in mm:
| Product | ASCE60 Rail (60lb rail/60 pound rail) | ||||||
| Standard | ASTM/AREMA | ||||||
| Size | Dimension | Weight (kg/m) | Material | Length (m) | |||
| Head (mm) | Height (mm) | Base (mm) | Web (mm) | ||||
| ASCE60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 | 700 | 6-12 |
At GNEE RAIL, material selection is strictly controlled during production. Each asce 60 rail is produced using qualified steel grades and consistent rolling processes to ensure stable 60 lbs rail dimensions in mm, reliable mechanical performance, and long-term operation under repeated loads.
What Materials Are Used in ASCE 60 Rail Manufacturing?
ASCE 60 rail manufacturing primarily uses high-purity carbon steel, such as Q235B, 55Q, and U71Mn. These materials are produced via basic oxygen furnaces (BOF) or electric arc furnaces (EAF), followed by hot rolling. These materials offer high strength, wear resistance, and durability, suitable for light-load, mining, and gantry crane systems.
- U71Mn (Manganese Steel): Frequently used for applications requiring higher strength, superior wear resistance, and improved durability against frequent operation.
| Mechanical Property | Chemical Composition (%) | |||||||||||||
| U71Mn | Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | ||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | |||||||||
| ≥390 | ≥40 | ≥880 | 9% | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | ≤0.030 | ≤0.030 | ≤0.250 | ≤0.250 | ≤0.250 | |||
- 55Q & Q235B: Commonly used for lighter-load or cost-sensitive projects.
| Q235B | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| ≥ | ≥ | ||||||||||
| 235 | 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.35 | 0.30-0.70 | 0.045 | 0.045 | ||
| 55Q | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | ≤ | ≤ | ||||
| ≥ | ≥ | ≥ | ≥ | ≥ | |||||||
| 685 | 69 | 197 | 0.50-0.60 | 0.15-0.35 | 0.60-0.90 | 0.04 | 0.04 | ||||
- Manufacturing Standards: Typically manufactured according to ASTM A1/AREMA standards, ensuring consistent mechanical performance.
- Properties: These steels provide high strength, wear resistance, and high fatigue resistance.
How Material Affects Rail Performance?
The material used in asce 60 rail directly affects how the rail performs during operation. It is not only about strength, but also about how the rail behaves under repeated stress and environmental conditions.
A properly selected steel grade improves wear resistance at the rail head, reducing material loss caused by wheel contact. It also enhances fatigue strength, allowing the rail to withstand repeated loading cycles without cracking.
Impact toughness is another key factor. In industrial environments where sudden loads may occur, the rail must resist fracture and maintain stability.
At GNEE RAIL, material control combined with precise asce 60 rail dimensions ensures that each 60 lb ASCE rail delivers consistent performance and longer service life.
FAQ
- What material is ASCE 60 rail made from?
It is typically made from medium to high carbon steel, such as ASTM rail steel or equivalent grades like U71Mn.These materials provide the strength and wear resistance required for rail applications.
- Why is carbon content important in rail steel?
Higher carbon content increases hardness and improves wear resistance at the rail head.This helps reduce material loss and extend service life under repeated wheel contact.
- Does material affect rail performance more than weight?
Material and weight both play critical roles. Weight determines load capacity, while material affects durability and resistance to wear and fatigue.Both must match the application for optimal performance.
- Can ASCE 60 rail material be customized?
Yes, material can be adjusted based on project requirements. This includes changes in carbon content or alloying elements.This helps improve performance in specific environments.
GNEE RAIL manufactures rail ASCE 60 using high-quality steel with controlled composition, ensuring stable 60 lbs rail weight per meter, precise asce 60 rail dimensions, and consistent 60 lbs rail dimensions in mm. With strict material selection and inspection processes, reliable performance can be achieved across different applications. If material selection or technical details need to be confirmed, you can contact us to get ASCE 60 rail solutions, and clear, practical support will be provided.
