A rail fish plate is a structural connector that enables jointed rails to transmit bending moments and shear forces across non-welded connections, reducing impact forces at rail ends. It is essential for traditional jointed track operation. GNEE RAIL offers fish plates for GB 8–60 kg/m, UIC50–UIC60, DIN536 A-series crane rails, QU crane rails, JIS rail types, AS1085 rails, BS11 profiles, and AREMA/ASCE rails, supported by material selection and surface treatment options.
Railway Fish Plate weight
Railway fish plates (joint bars) typically weigh between 10 kg and 28 kg per piece, depending on the rail size (e.g., 50 kg/m or 60 kg/m) and length. Common, standard-duty plates (e.g., for 60 kg rails) usually weigh between 12 kg and 23.78 kg, while lighter rail fish plates can be lower in weight.

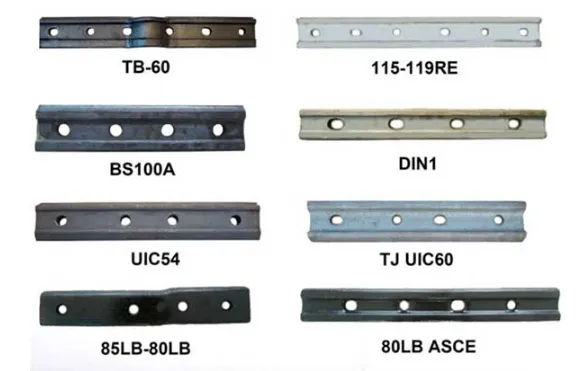

Typical Weight by Type and Standard:
- 60 kg Joggled Fish Plate: 12–15 kg.
- UIC60 (4 Hole): 18.1 kg.
- UIC54 (4 Hole): 14.34 kg.
- 50 kg (4 Hole): 14.3 kg.
- 115RE (4 Hole): 17.04 kg.
- 132-136RE (4 Hole): 17.75 kg.
- Standard 4-6 Hole Plate Range: 10–28 kg.
| Standard | Type | Length/Diameter | Weight /Material | |
| AREMA 2007 | 115RE | 4 hole-24" | 17.04Kg | 45# chemical |
| 115RE | 6 hole-36" | 25.56Kg | composition(%): | |
| 132-136RE | 4 hole-24" | 17.75Kg | C: 0.42-0.50 | |
| 132-136RE | 6 hole-36" | 26.63Kg | Mn: 0.50-0.80 | |
| UIC864 | UIC60 | 4 hole-630/Φ26 | 18.07Kg | Si: 0.17-0.37 |
| UIC60 | 4 hole-600/Φ28 | 17.47Kg | Cr: ≤0.25 | |
| UIC60 | 4 hole-630/Φ25 | 18.1Kg | P: ≤0.035 | |
| UIC54 | 4 hole | 14.34Kg | S: ≤0.035 | |
| UIC54 | 6 hole-800 | 19.94Kg | ||
| BS 47-1 | BS75R | 4 hole | 6.56Kg | |
| BS60A | 4 hole | 5.61Kg | ||
| BS80A | 4 hole | 6.5Kg | ||
| BS90A | 685.8/Φ26 | 13.23Kg | 50# chemical | |
| BS90A | 792.9/Φ26.2 | 15.34Kg | composition(%): | |
| BS100A | 4 hole | C: 0.62-0.70 | ||
| 90/91LB | 4 hole | 18.08Kg | Mn: 0.50-0.80 | |
| 90/91LB | 6 hole | 19.9Kg | Si: 0.17-0.37 | |
| AS | 50kg | 4 hole | 14.3Kg | Cr: ≤0.25 |
| 50kg | 6 hole | 19.5Kg | P: ≤0.035 | |
| S49 | 4 hole | 9.71Kg | S: ≤0.035 |
| Fishplate For Chinese Standard Steel Rail | |||
| GB15KG | 15.2 | YB226-63 | Q235,45# |
| GB18KG | 18.06 | YB225-63 | |
| GB22KG | 22.3 | YB14-63 | |
| GB24KG | 24.46 | ||
| GB30KG | 30.1 | YB351-63 | |
| GB38KG | 38.733 | TB/T 2345-2008 | 45#,55# |
| GB43KG | 44.653 | ||
| GB50KG | 51.514 | ||
Factors Influencing Weight:
- Rail Size: Larger rails (e.g., 60kg, 75kg) require heavier, larger fish plates compared to light rails (e.g., 8kg-30kg).
- Length & Holes: Longer fish plates with 6 holes are generally heavier than 4-hole counterparts.
- Material: Usually made from hot-rolled steel, high-strength, or nodular cast iron.
| Material Type | Typical Grade / Designation | Chemical Composition (wt%) | Notes / Equivalent Standards |
| Carbon Structural Steel | Q235 (GB/T 700) | C: ≤0.22 | Common mild steel for general joint bars. Similar to ASTM A36, S235JR. |
| Si: ≤0.35 | |||
| Mn: 0.30-0.65 | |||
| P: ≤0.045 | |||
| S: ≤0.045 | |||
| Carbon Structural Steel | Q255 (GB/T 700) | C: 0.18-0.28 | Slightly higher strength than Q235. |
| Si: ≤0.35 | |||
| Mn: 0.40-0.70 | |||
| P: ≤0.045 | |||
| S: ≤0.045 | |||
| Medium Carbon Steel | 50Mn / 50BA (GOST 10779) | C: 0.47-0.55 | Classic high-strength fish plate steel. Widely used for mainline joints. |
| Si: 0.17-0.37 | |||
| Mn: 0.80-1.20 | |||
| P: ≤0.040 | |||
| S: ≤0.045 | |||
| Medium Carbon Steel | 55# (GB/T 699) | C: 0.52-0.60 | Standard medium carbon steel for demanding applications. Similar to AISI 1055. |
| Si: 0.17-0.37 | |||
| Mn: 0.50-0.80 | |||
| P: ≤0.035 | |||
| S: ≤0.035 | |||
| Alloy Steel | 42CrMo (GB/T 3077) | C: 0.38-0.45 | High-strength, high-toughness alloy for severe service. Similar to AISI 4140/4142. |
| Si: 0.17-0.37 | |||
| Mn: 0.50-0.80 | |||
| Cr: 0.90-1.20 | |||
| Mo: 0.15-0.25 | |||
| P: ≤0.035 | |||
| S: ≤0.035 | |||
| Spheroidal Graphite Cast Iron | QT450-10 (GB/T 1348) | C: 3.60-3.90 | Used in some traditional/joint kits for its castability and damping properties. Similar to EN-GJS-450-10. |
| Si: 2.00-3.00 | |||
| Mn: ≤0.50 | |||
| P: ≤0.07 | |||
| S: ≤0.015 | |||
| Mg: 0.03-0.06 (Nodulizer) | |||
| Insulating Composite Material | Epoxy Fiberglass / FRP | Base: Epoxy Resin | No metallic elements. Provides electrical insulation (Resistivity >10¹² Ω·cm), corrosion resistance. |
| Reinforcement: E-Glass Fiber (>60%) | |||
| Additives: Hardener, fillers (e.g., SiO₂) |
- Type: Insulated joints, designed for electrical signaling, may have different weights due to composite materials.
Founded in 2008, GNEE RAIL is a leading global manufacturer and supplier of railway components, specializing in high-quality rail fish plates (joint bars/splice bars) with strong production capacity and global service capabilities.
Our rail fish plate portfolio is comprehensive and compliant with international standards including UIC, AREMA, BS, DIN, and GB, covering light rail (8kg-30kg), heavy rail (38kg-75kg), and crane rail (QU70-QU120) systems. We offer diverse types such as insulated joint bars, bulged fish plates, and compromise rail joints,with precise specifications (4-hole/6-hole, 24-inch/36-inch), ensuring excellent mechanical performance.We uphold strict quality control supported by ISO 9001:2015 certification, an in-house inspection center, and third-party audits by SGS and BV. Our one-stop service includes customization, production, packaging, and after-sales support, tailored to clients' project needs.
