Railroad spikes, also known as railway spikes, are an important component of railroad infrastructure. They are used to secure rails to the underlying crossties, which in turn are attached to the ballast bed. Without these spikes, the rails would shift and become unstable, causing accidents and derailments.

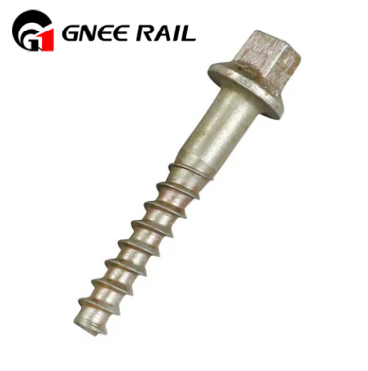

Coach screws are specifically designed fasteners used to secure rails to the underlying railway sleepers or ties. They are typically made of high-strength materials such as carbon steel or stainless steel to withstand the demanding conditions of railway environments. The construction of a coach screw consists of a threaded shank, a head, and in some cases, a flange or square neck.
Specifications of coach screw
| Specification | Range/Options |
|---|---|
| Thread Size | Coarse thread design |
| Length | 65mm (3 inches) to 200mm (8 inches) or more |
| Shank Diameter | 12mm to 24mm |
| Head Type | Hexagonal or Square |
| Material | Q195 and Q235 Carbon Steel or Stainless Steel |
| Coating | Hot-dip galvanizing, Zinc plating, etc. |
| Flange/Square Neck | Available/Customizable |
If you have special requirements for dimensions or higher strength materials, please contact us for special custom production.
GNEE RAIL manufactures and sells various types of threaded track spikes used for wooden sleepers or concrete sleepers. The product specifications include: Ss1, Ss2, Ss5, Ss6, Ss7, Ss8, Ss16, Ss17, Ss23, Ss24, Ss25, Ss27, Ss28, Ss35, Ss36, Ss76, as well as 3V threaded track spikes V20, V23, V26, and various trapezoidal tooth bolts. The grades available are 4.6, 4.8, 5.6, 5.8, 6.8, 8.8, 10.9, and 12.9. The material grades include Q235, 35, 45, 40Cr, 20MnTiB, 35CrMo, and 42CrMo. The surface treatments available are plain oil, blackening, hot-dip galvanizing, electroplating, and Dacro coating.
| the types of Ss Series Sleeper Screw | Product Name | Specification | Material | Surface | Standard | |
| 1 | Fishtail Bolt | M8-M64 | Q235,45#,55#,etc | Zinc,Plain, Black Oil | UIC,AREMA,JIS,GB or according to your requests. | |
| 2 | Screw Spike | Square Head Screw Spike | M16-M22 *145-200 | |||
| Hexagon Head Screw Spike | ||||||
| Other Types | ||||||
| Type | Specification | Weight/kg | Surface | Standard | ||
| 3 | Sleeper Screw | Ss 1/130 | M22*130 | 0.451 | Zinc,Plain, Black Oil | UIC,AREMA,JIS,GB or according to your requests. |
| Ss 1/150 | M22*150 | 0.478 | ||||
| Ss 2/180 | M22*180 | 0.595 | ||||
| Ss 5/150 | M24*150 | 0.545 | ||||
| Ss 6/130 | M26*130 | 0.658 | ||||
| Ss 6/150 | M26*150 | 0.702 | ||||
| Ss 6/170 | M26*170 | 0.385 | ||||
| Ss 7/180 | M24*180 | 0.636 | ||||
| Ss 8/140 | M24*140 | 0.528 | ||||
| Ss 8/150 | M24*150 | 0.548 | ||||
| Ss 8/160 | M24*160 | 0.568 | ||||
| Ss 23/160 | M23*160 | 0.645 | ||||
| Ss 24/165 | M24*165 | 0.59 | ||||
| Ss 25/165 | M25*165 | 0.625 | ||||
