What is the standard length of the Profile A75 rail?

What is the standard length of the Profile A75 rail?

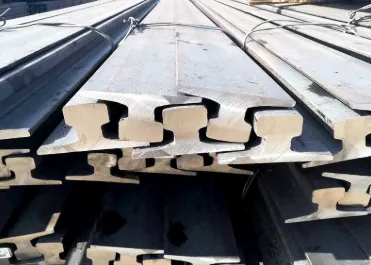

The standard length of Profile A75 rail is typically 12 meters, which is the most common specification for international shipping and industrial installation. According to the European DIN 536 standard, this length is optimized to balance the structural integrity of A75 tracks with the practical requirements of logistics and on-site handling. While 12 meters is the global benchmark, DIN 536 A75 rail specifications also allow for custom lengths-ranging from shorter segments for specific A75 runway sections to longer continuous runs-to minimize the number of joints in heavy duty crane rail systems.

• Logistical Optimization: The 12-meter A75 steel rail length fits perfectly into standard 40-foot containers or onto specialized flatbed trailers, facilitating efficient export to shipyards and mines globally.

• Reduced Joint Maintenance: By utilizing the DIN 536 Standard A75 rail length, can minimize the use of fishplates and welding points, which are the most common areas for wear in overhead cranes runways.

• Thermal Expansion Management: Standardized lengths allow for precise calculation of gaps required for thermal expansion, ensuring that A75 Rail dimensions remain stable even in high-temperature foundries.

• Installation Efficiency: Consistent A75 tracks lengths streamline the layout process for gantry cranes in large-scale material yards, as bolt hole patterns for sole plates can be standardized across the project.

GNEE RAIL implements advanced rolling and cooling technologies to ensure that every Profile A75 rail maintains exceptional straightness and dimensional accuracy over its entire 12-meter span. Our manufacturing process includes rigorous ultrasonic testing to verify that the DIN 536 A75 crane rail materials are free from internal defects that could compromise the A75 Rail Material Strength. By offering integrated End Processing & Finishing-including pre-drilling, bevel cutting, and Custom Drilling Services-we provide ready-to-install A Series crane rails that significantly reduce on-site labor and ensure a high-precision fit for any DIN Standard Crane Rail project.

What is the standard size of a A75 Crane Rail?

The standard size of an A75 crane rail (manufactured according to DIN 536 P1:1991) is a head width of 75 mm, a base width of 200 mm, a height of 85 mm, and a mass of 56.2 kg/m. These rails are typically furnished in lengths of 12 meters, with web thicknesses of 45 mm.

Key Dimensions (DIN 536 A75)

• Head Width: 75 mm
• Height: 85 mm
• Base Width: 200 mm
• Web Thickness: 45 mm
• Weight: 56.2 kg/m

What are the advantages of the A75 Crane Rail?

The A75 crane rail (DIN 536-1991) is a specialized, heavy-duty rail designed for high-capacity crane systems, offering exceptional structural stability, superior wear resistance, and high load-bearing capacity for port, mining, and industrial applications. Its wide base and thick web profile reduce long-term deformation and fatigue.

Key Advantages of the A75 Crane Rail:

• High Load-Bearing & Stability: Designed with a 200 mm wide base and a 75 mm head, the A75 provides excellent lateral stability for medium-to-heavy crane systems, supporting cranes with capacities up to 100 tons.

• Superior Wear Resistance: Usually manufactured with high-strength materials like U71Mn or 900A grade steel, it handles frequent start-stop scenarios and high-intensity, continuous operations.

• Reduced Maintenance Costs: The durable, robust profile is highly resistant to lateral stress and deformation, leading to a longer service life and fewer replacements.

• Standardized Compatibility: As a DIN 536 standard rail, it offers reliable performance, easy design integration, and interchangeability.

• Versatile Application: Ideal for both high-traffic logistics zones and high-temperature environments, such as steel plants and warehouses.

Frequently Asked Questions

• What is the standard length for a Profile A75 rail?

The DIN 536 Standard A75 rail length is typically 12 meters per section. This standard length is chosen to facilitate ease of transportation and to minimize the number of fishplates required for a standard installation.

• Can A75 rail be cut to custom lengths?

Yes, we provide End Processing & Finishing services to cut the A75 steel rail to any specific length required for your project. This is particularly useful for completing specific A75 runway sections in tight industrial spaces.

• How much does a 12-meter A75 rail weigh?

Given the a75 rail weight per meter is approximately 56.2 kg, a standard 12-meter section of A75 crane rail weighs roughly 674.4 kg. This is a vital calculation for planning shipping and on-site crane lifting.

• Are the ends of the A75 rail pre-drilled for fishplates?

We offer Custom Drilling Services to provide pre-drilling based on your specific layout. This ensures that the DIN 536 A75 Rail Specifications are met and that the rail is ready for immediate assembly with fishplates.

• What is the benefit of the A75 profile over other rail types?

The A75 profile features a broad base (200 mm) and a lower height (85 mm), which provides superior lateral stability for overhead cranes compared to standard railway or light rails.

• What material grades are used for A75 crane rail?

DIN 536 A75 crane rail materials are usually supplied in high-strength grades such as 690, 880, or 1080 N/mm², providing the necessary A75 rail hardness for heavy industrial use in shipyards and foundries.
