What is the price per metric ton of the S20 rail?

The export price for the DIN 5901 S20 light steel rail typically ranges between USD 550 and USD 880 per metric ton (FOB Chinese Port).In industrial bulk steel procurement, a fixed price cannot be permanently locked because rails are priced dynamically based on real-time raw material indexes, production specifications, and order volumes.

The actual price per metric ton for your specific project is dictated by four major technical and commercial variables:

Metallurgical Steel Grade Selection | 55Q vs. Q235B Pricing

The chemical composition and structural performance properties of the steel profile directly influence the base cost per ton.

Q235B Grade (Standard Structural Carbon Steel): This represents the lower end of the pricing spectrum (closer to USD 550–$590/MT). It is a cost-effective choice for general-purpose workshop lines or low-frequency setups, but it lacks the advanced hardness of rail steel.

DIN Rail S20 Light rail

Q235B	Mechanical property						Chemical composition(%)
	Yield strength		Tensile strength		Elongation	Hardness	C	Si	Mn	S	P
	MPa	kg/mm²	MPa	kg/mm²	min	HB		≤		≤	≤
	≥	≥
	235	24	375-460	38-47	26%		0.12-0.22	0.35	0.30-0.70	0.045	0.045

55Q Grade (Premium Medium-Carbon Rail Steel): This grade commands a premium (typically USD 620–$680/MT) due to its higher manganese and carbon content. It provides the necessary surface hardness (200–260 HBW) to support high-frequency automated warehouse systems (ASRS) without head flattening, making it a more durable investment.

DIN5901 S20 steel rail

55Q	Mechanical property						Chemical composition(%)
	Yield strength		Tensile strength		Elongation	Hardness	C	Si	Mn	S	P
	MPa	kg/mm²	MPa	kg/mm²	min	HBW				≤	≤
	≥	≥	≥	≥	min	≥				≤	≤
			685	69		197	0.50-0.60	0.15-0.35	0.60-0.90	0.04	0.04

Total Purchase Volume and Batch Size | Minimum Order Quantity (MOQ)

Steel rolling mills operate on massive economies of scale. Configuring the rollers for the specific 100 mm × 82 mm geometry of the S20 profile requires intensive machine calibration time.

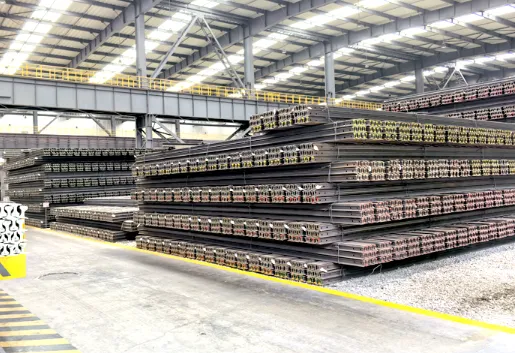

din s20 light rail

Container-Load Orders (≥ 26 Tons): Ordering in full container-load increments allows us to optimize mill scheduling, yielding the most competitive per-ton rates.

Small-Batch/LCL Orders: Quantities below our standard minimum production runs incur additional processing surcharges to cover the setup costs of the rolling line.

Incoterms and Logistical Arrangements | FOB, CIF, or DDP

The final invoice price per ton will vary significantly based on how much of the international supply chain GNEE RAIL manages for your team:

FOB: Includes the base product cost, high-tensile bundling, export customs clearance, and domestic trucking to ports like Tianjin or Qingdao.

CIF/DDP: Factors in volatile ocean freight rates, marine insurance premiums, and destination import tariffs.

Current Market Advisory: Global steel rebar and rail billet futures are hovering around CNY 3,150 to 3,250 per ton (approx. USD 440–$450 base billet cost). Because light rails require specialized structural rolling, straightening, and testing processes, the final profile margin is added to this base raw material index.

shipping of s20 rail

Why choose DIN5901 S20 steel rail?

The DIN5901 S20 steel rail is a standardized European light rail profile designed specifically for low-to-medium-duty industrial track applications. Weighing exactly 19.8 kg/m, it represents an engineering sweet spot for systems requiring reliable stability and load distribution without the dead weight or structural bulk of heavy mainline transport rails.

Choosing the S20 profile over alternative light rails (such as S14 or S18) or heavy crane rails involves several distinct technical advantages.

High Load Capacity for Light Profiles

At nearly 20 kg per meter, the S20 features a robust 10 mm web thickness and a 100 mm height. This geometry delivers superior bending resistance and structural rigidity compared to lighter sections like the S14 or S18. It effectively eliminates the risk of local track buckling under high wheel-axle loads, ensuring long-term track alignment.

Type of light rail	Standard	Dimensions mm				Section S	Mass m
Type of light rail	Standard	H	F	K	S	cm²	kg/m
European standard EN 13674-1
S20	DIN 5901	100	82	44	10	25,22	19,80

Tailored Material Selection for Target Environments

Depending on the specific operating conditions, the S20 rail is typically supplied in two primary steel grades to optimize performance and cost:

55Q Grade: High-carbon steels offering a high tensile strength (≥ 685 MPa). These are ideal for high-traffic or abrasive applications-such as automated warehouses and gantry crane runways-where excellent contact fatigue resistance and low wear rates are critical.

55Q	Mechanical property						Chemical composition(%)
	Yield strength		Tensile strength		Elongation	Hardness	C	Si	Mn	S	P
	MPa	kg/mm²	MPa	kg/mm²	min	HBW				≤	≤
	≥	≥	≥	≥	min	≥				≤	≤
			685	69		197	0.50-0.60	0.15-0.35	0.60-0.90	0.04	0.04

Q235B Grade: A lower-carbon structural steel that provides exceptional fracture toughness and superior weldability. This is preferred for indoor factory floors, automated guide tracks, and systems requiring seamless joint welding without complex post-weld heat treatment.

55Q	Mechanical property						Chemical composition(%)
	Yield strength		Tensile strength		Elongation	Hardness	C	Si	Mn	S	P
	MPa	kg/mm²	MPa	kg/mm²	min	HBW				≤	≤
	≥	≥	≥	≥	min	≥				≤	≤
			685	69		197	0.50-0.60	0.15-0.35	0.60-0.90	0.04	0.04

Get a Quote in 24 Hours

Industrial track buyers can Contact GNEE RAIL today to leverage our eighteen years of international trade export experience, securing high-quality DIN5901 steel rollings alongside our complete series of light track components, matching fasteners, and custom-drilled web processing services. Our mill provides diverse global standard rail types backed by dedicated project specialists who manage your entire order lifecycle with comprehensive after-sales oversight, so connect with our global service division immediately to lock in volume pricing or request engineering blueprints.
