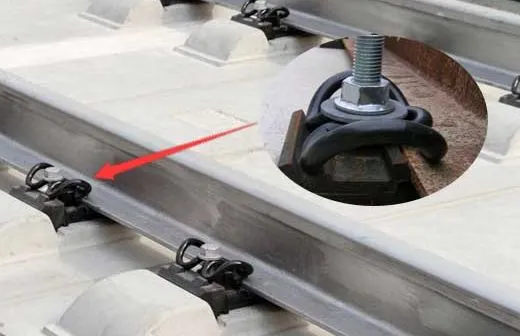

Rail clip is a component of railway fastening systems. It is used to fix the rails to underlying baseplate and sleepers. Its main function is to prevent the rail from moving.No matter as a part of rail fastening system or as a rail fastener, elastic rail clip is used with other railway track parts, such as railroad spike, rail pad, tie plate and plastic dowel.
Interaction between rail clips and rail Plastic Dowel
An effective way to ensure that your rails have a solid foundation and adequate support is to use railway clips and rail plastic dowel. The rail plastic dowel is considered a fundamental component of a railway fastening system because it needs to be embedded into the concrete sleeper before the rest of the entire system can be connected. This method helps ensure the stability and reliability of railway tracks and provides solid foundation support for railway transportation.
Varieties of rail clips

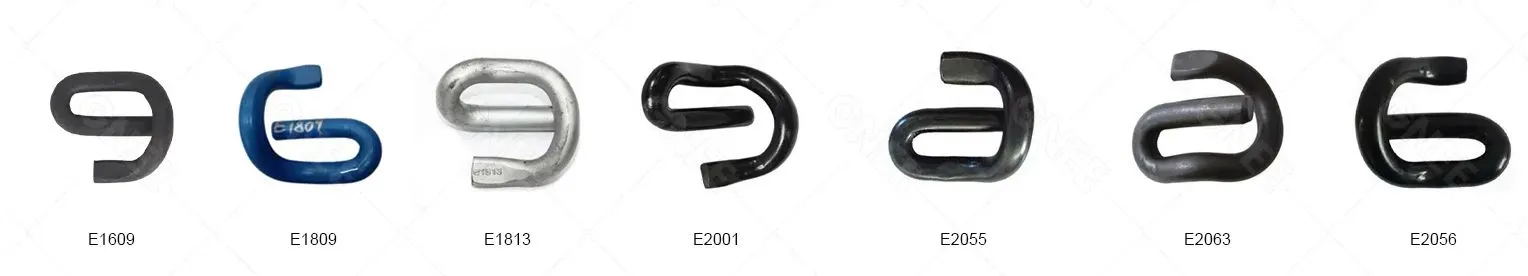

| E-type Rail clip specification | |
| Name | E-type rail clip |
| Material | 60Si2MnA 60Si2CrA 55Si2Mn 38Si7 |
| Hardness | 44-48HRC |
| Fatigue Life | for Dia.18 is 3 millions cycles without breaking |
| for Dia.20 is 5 millions cycles without breaking | |
| Surface | plain (oiled), Oxide black, color painting or according to customer requirement |
| Standard | DIN17221, BS970, GB/T1222 |
Contact GNEE to obtain the detailed product catalog.
| SKL Rail clip specification | |
| Name | SKL tension clamp |
| Material | 60Si2MnA 60Si2CrA 55Si2Mn 38Si7 |
| Hardness | 42-47HRC |
| Fatigue Life | for Dia.18 is 3 millions cycles without breaking |
| for Dia.20 is 5 millions cycles without breaking | |
| Surface | plain (oiled), Oxide black, color painting or according to customer requirement |
| Standard | DIN17221, BS970, GB/T1222 |
Contact GNEE to obtain the detailed product catalog.
| Deenik Rail clip specification | |
| Name | Deenik rail clip |
| Material | 60Si2CrA 55Si2Mn 38Si7 |
| Hardness | 42-47HRC |
| Fatigue Life | for Dia.18 is 3 millions cycles without breaking |
| for Dia.20 is 5 millions cycles without breaking | |
| Surface | plain (oiled), Oxide black, color painting or according to customer requirement |
Contact GNEE to obtain the detailed product catalog.
| Nabla Rail clip specification | |
| Name | Nabla rail clip |
| Material | 60Si2MnA |
| Hardness | Hrc41-48 |
| Sizes | As your drawing |
| Surface | plain (oiled), Oxide black, color painting or according to customer requirement |
| Standard | DIN17221, BS970, GB/T1222 |
Contact GNEE to obtain the detailed product catalog.
