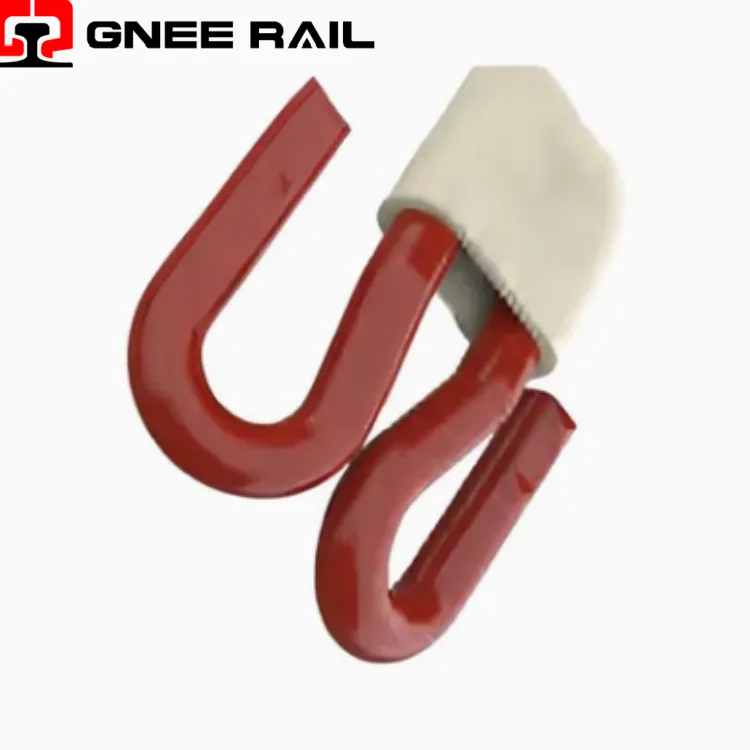

Rail Fast Clip Fastening System
The Railway Fast Clip is a lightweight elastic fastener designed for quick installation on concrete sleepers. Its optimized shape allows manual placement without specialized hydraulic equipment, reducing track construction time significantly. Manufactured from durable spring steel, the clip delivers reliable clamping force for metro, light rail, and industrial tracks. Pre-assembly options enable faster on-site deployment. This cost-effective solution balances performance with ease of use, making it ideal for projects where speed and simplicity are priorities.
Technical Specifications:
| Parameter | Value | Note |
|---|---|---|
| Material | 60Si2Mn | Spring steel |
| Toe Load | 7 – 10 | kN |
| Deflection | 9 – 11 | mm |
| Installation | Hammer drive | No tool needed |
| Fatigue | 2 million | cycles |
| Coating | HDG or zinc-flake | Optional |
| Rail Types | 50E1, 54E1 | UIC light profiles |
| Weight | 0.45 – 0.55 | kg per clip |
| Standard | EN 13481 | Compliant |
Installation & Maintenance Perspective:
- Installation requires only a simple hammer without hydraulic tools.
- Workers can place over three hundred clips per hour individually.
- Pre-mounted systems eliminate component handling at the job site.
- Removal uses identical method for rapid rail change-outs.
- No torque checking or force measurement steps are needed afterward.
Maintenance & Operational Perspective
- Fewer moving parts reduce potential failure points during service.
- Low-profile design minimizes interference with train undercarriages.
- Elastic body absorbs minor track misalignments without adjustment.
- Uniform leg length prevents uneven pressure on rail base.
- Compact shape allows dense packing for economical transport.
