Products Description
30kg lightweight steel rails are commonly used in mining railways, metallurgical plants, port railways, and some light industrial railways, suitable for carrying lighter goods. Due to its lighter weight, 30kg steel rails have lower manufacturing, transportation, and installation costs, making them an economical and practical choice for railway rails.
Although its load-bearing capacity is low, it can provide sufficient strength and wear resistance to meet the needs of most light transportation systems.Made using hot rolling technology, the steel rail material is usually high-strength alloy steel, which has good wear resistance, fatigue resistance, and corrosion resistance. Due to its lightweight and low cost, 30kg lightweight steel rails are particularly suitable for railway systems carrying small and medium loads.

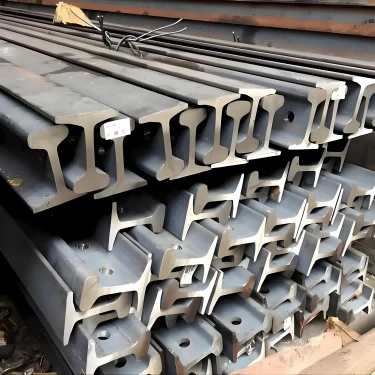

Light Steel Rail 30kg 55Q
| Parameters | |||
| type | weight (kg/m) | material | length (m) |
| 30kg | 30.10 | 55Q | 6-10m |
| rail height (mm) | bottom width (mm) | head width (mm) | web thinkness (mm) |
| 107.95 | 107.95 | 60.33 | 12.3 |
Other Features
In addition to high strength and wear resistance, 55Q steel also has good toughness and fatigue resistance. It can effectively resist crack propagation and damage caused by repeated loads during long-term use, and improve the service life of the steel rail.
This material has strong adaptability, The steel rails made of 55Q material can adapt to various complex working environments, especially in high-speed or heavy-duty railways, and can withstand high operating speeds and heavy load pressures, reducing the need for frequent track replacement.
Light Steel Rail
| Light Steel Rail | size | Rail Height | Bottom Width | Head Width | Web Thickness | Weightkg/m |
| 8kg | 65 | 54 | 25 | 7 | 8.42 | |
| 12kg | 69.85 | 69.85 | 38.1 | 7.54 | 12.2 | |
| 15kg | 79.37 | 79.37 | 42.86 | 8.33 | 15.2 | |
| 18kg | 90 | 80 | 40 | 10 | 18.06 | |
| 22kg | 93.66 | 93.66 | 50.8 | 10.72 | 22.3 | |
| 24kg | 107 | 92 | 51 | 10.9 | 24.46 | |
| 30kg | 107.95 | 107.95 | 60.33 | 12.3 | 30.1 |
