Rail ASCE 60, also known as 60 lb ASCE rail, is a standard medium-weight rail profile.The rail weight of 60 pounds per meter is 29.8kg, which is equivalent to 29.8kg/m.The 60 lb rails are produced according to the American ASCE standard ASTM A1 and are mainly used in North America.The 60-pound rail is typically used for light cargo or light rail transit lines, but can also be used for less commonly used rails.
At GNEE RAIL, each asce 60 rail is produced with strict rolling control and inspection. Stable geometry, accurate tolerances, and consistent cross-section ensure smooth installation and reliable long-term operation.
What Are the Cross Section Dimensions of 60 lb Rail in mm?
The cross section of 60 lb ASCE rail is defined by several key dimensions. These values are standardized and must be controlled within tolerance to ensure compatibility and performance.

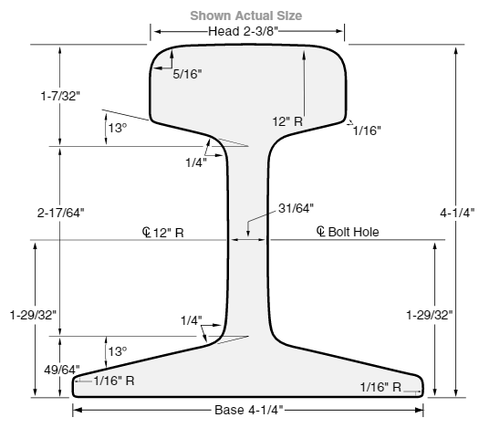

60 lbs rail dimensions in mm:
| Parameter | Value (mm) |
|---|---|
| Rail Height | 152.4 mm |
| Head Width | 63.5 mm |
| Foot Width | 139.7 mm |
| Web Thickness | 11.1 mm |
| Weight | 29.8 kg/m |
These are the commonly referenced 60 lbs rail dimensions in mm used in international projects. Consistency in these values ensures that rail ASCE 60 can be directly used with standard fastening systems.
How Cross Section Affects Load and Performance?
The cross-section design of 60 lb ASCE rail determines how load is distributed.
The rail head track wheel contact and wear. The web transfers load from the head to the base. The foot spreads the load across the support structure.
These elements work together within the defined asce 60 rail dimensions to provide stable performance under repeated loading.
If any part of the cross-section is not within tolerance, stress distribution becomes uneven, which can lead to premature wear or deformation.
What are the performance advantages of a 60 lb asce rail?
60 lb ASCE rail (approx. 29.8 kg/m) is a high-performance light rail, balancing durability with a 60 lb/yd weight for industrial and mining applications. Key advantages include high-strength, wear-resistant steel, strong bending/deformity resistance under heavy loads, and standardized dimensions (ASTM A1) ensuring compatibility with cranes and automated systems.
Key Performance Advantages:
- Durable Load Capacity: Engineered for medium-duty service, it handles heavier loads than standard light rails, making it ideal for mining transportation and industrial applications.
- High Wear and Fatigue Resistance: Often constructed from high-quality steel (like Q235B, 55Q, or U71Mn), these rails offer superior wear resistance, resulting in a longer service life and reduced maintenance.
- Structural Stability: The design offers strong resistance to deformation from high-frequency operation and vibration.
Versatility in Application:
- Light Rail Transit: Suitable for light rail or subway construction.
- Industrial Use: Ideal for bridge cranes, trolley systems, and factory applications.
- Mining: Used for transport in mining operations.
- Safety and Compatibility: Adheres to American Society of Civil Engineers (ASCE) standards, ensuring consistent performance and compatibility with standard components (like fishplates and clamps).
FAQ
- What are the standard cross section dimensions of 60 lb rail?
The standard dimensions include a height of 152.4 mm, head width of 63.5 mm, foot width of 139.7 mm, and web thickness of about 11.1 mm.
- Why are these dimensions important?
They determine compatibility with fastening systems and overall track stability.Incorrect dimensions can lead to installation and performance issues.
- How do dimensions affect rail performance?
They influence load distribution, wear behavior, and structural strength.Accurate dimensions ensure stable and long-lasting performance.
- Is ASCE 60 rail suitable for heavy-duty use?
It is designed for medium-duty applications.Heavier rail profiles are required for high-load systems.
GNEE RAIL produces rail ASCE 60 with precise asce 60 rail dimensions, accurate 60 lbs rail dimensions in mm, and stable 60 lbs rail weight per meter. With strict quality control and flexible processing, reliable performance can be ensured across different applications. If dimension confirmation or technical support is needed, you can contact us to get ASCE 60 rail solutions, and practical assistance will be provided.
