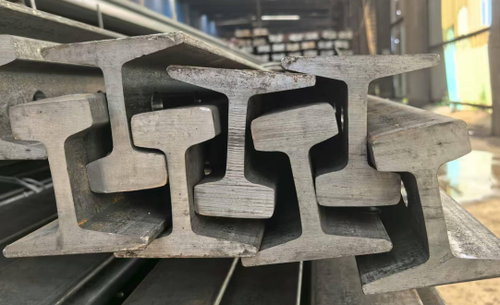

Rail ASCE 60, also known as 60 lb ASCE rail, is a medium-weight rail profile with standard asce 60 rail dimensions, accurate 60 lbs rail dimensions in mm, and a nominal 60 lbs rail weight per meter of about 29.8 kg/m.
60 lbs rail dimensions in mm:
| Size | Head (mm) | Height (mm) | Base (mm) | Web (mm) | Nominal weight (kg/m) | Material | Length (m) |
|---|---|---|---|---|---|---|---|
| ASCE 25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 | 700 | 6-12 |
| ASCE 30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 | 700 | 6-12 |
| ASCE 40 | 47.62 | 88.9 | 88.9 | 9.92 | 19.84 | 700 | 6-12 |
| ASCE 50 | 54 | 98.4 | 98.4 | 11.11 | 24.855 | 700 | 6-12 |
| ASCE 60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 | 700 | 6-12 |
| ASCE 75 | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | 900A/1100 | 12-25 |
| ASCE 85 | 65.09 | 131.76 | 131.76 | 14.29 | 42.17 | 900A/1100 | 12-25 |
At GNEE RAIL, asce 60 rail is produced using controlled raw materials and stable rolling processes. Chemical composition, hardness, and internal structure are strictly monitored to ensure consistent performance across different working conditions.
What Material Grades Are Used in ASCE 60 Rail?
The material used for 60 lb ASCE rail is typically medium to high carbon steel. The most common grades include ASTM rail steels and equivalent materials such as U71Mn, depending on project requirements.
These steels usually contain about 0.6%–0.8% carbon, which increases hardness and improves wear resistance at the rail head. Manganese is also added to improve strength and impact resistance.
| Q235B | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| ≥ | ≥ | ||||||||||
| 235 | 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.35 | 0.30-0.70 | 0.045 | 0.045 | ||
| 55Q | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | ≤ | ≤ | ||||
| ≥ | ≥ | ≥ | ≥ | ≥ | |||||||
| 685 | 69 | 197 | 0.50-0.60 | 0.15-0.35 | 0.60-0.90 | 0.04 | 0.04 | ||||
| Mechanical Property | Chemical Composition (%) | |||||||||||||
| U71Mn | Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | ||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | |||||||||
| ≥390 | ≥40 | ≥880 | 9% | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | ≤0.030 | ≤0.030 | ≤0.250 | ≤0.250 | ≤0.250 | |||
With proper control of composition and heat treatment, the material ensures that rail ASCE 60 can withstand repeated loading without premature failure.
Which Material Grade Should Be Selected?
Material selection depends on the working environment and load conditions.
- For standard industrial use, conventional carbon steel grades are sufficient. These provide stable performance at a reasonable cost.
- For higher wear environments, such as ports or heavy-duty logistics systems, higher carbon or alloyed steel may be required to improve durability.
In environments with impact or vibration, material toughness becomes more important to prevent cracking.
GNEE RAIL supports material selection based on application requirements, ensuring that the chosen rail ASCE 60 delivers the expected performance.
FAQ
- What material is ASCE 60 rail made from?
It is typically made from medium to high carbon steel such as ASTM rail steel or U71Mn.These materials provide the necessary strength and wear resistance.
- Why is carbon content important?
Carbon increases hardness and improves wear resistance at the rail head.This helps extend service life under repeated use.
- Can material grade be customized?
Yes, material can be adjusted based on application requirements.This ensures the rail performs well in specific environments.
- What happens if low-quality steel is used?
It can lead to rapid wear, cracking, or deformation.This increases maintenance cost and reduces service life.
- Is higher hardness always better?
No, excessive hardness can reduce toughness and increase the risk of cracking.A balance between hardness and toughness is required.
GNEE RAIL manufactures rail ASCE 60 using high-quality steel grades with controlled composition, ensuring stable 60 lbs rail weight per meter, precise asce 60 rail dimensions, and consistent 60 lbs rail dimensions in mm. With strict material selection and inspection processes, reliable performance can be achieved across different applications. If material selection or technical details need to be confirmed, you can contact us to get ASCE 60 rail solutions, and practical support will be provided.
