What is the weight of a Pandrol E Clip?
E rail clip provide positive and durable rail alignment under the harshest working conditions, which extend the life of railway track. Generally, e rail clips are available at the range from 18mm to 23mm diameter. Rail –e clip is usually made of spring steel. As an important type of elastic rail clips, E-rail clip has a lot of sizes, such as E1, E2, E3, E1609, E1809, E1817, E2001, E2006, E2009, E2055, E2056, etc.
| Model | Diameter | Material | Under Pressure | HRC | Weight |
| E1609 | Ø 16mm | 60Si2MnA | ≥950kg | 44-48 | 0.43kg/pc |
| E1809 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.61kg/pc |
| E1813 | Ø 18mm | 60Si2MnA | ≥950kg | 44-48 | 0.62kg/pc |
| E2001 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2009 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2039 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2007 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2055 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2056 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
| E2063 | Ø 20mm | 60Si2MnA | ≥950kg | 44-48 | 0.80kg/pc |
Pandrol E-clips (elastic rail clips) typically weigh around 0.6 to 0.8 kilograms (1.3 to 1.75 lbs) per piece, depending on the specific model and diameter, with common Ø20mm diameter clips often weighing 0.80 kg. For example, the E1813 model weighs about 0.62kg, while larger models with a 20mm diameter are typically 0.80kg.
These clips are made from spring steel, and their weight provides the necessary tension to hold rails securely to sleepers.
| Name | E-type rail clip |
| Material | 60Si2MnA 60Si2CrA 55Si2Mn 38Si7 |
| Hardness | 44-48HRC |
| Fatigue Life | for Dia.18 is 3 millions cycles without breaking |
| for Dia.20 is 5 millions cycles without breaking | |
| Surface | plain (oiled), Oxide black, color painting or according to customer requirement |
| Standard | DIN17221, BS970, GB/T1222 |
| Material | 60Si2MnA | 60Si2CrA | 55Si2Mn | 38Si7 |
| Chemical composition(%) | C:0.56-0.64, Mn:0.60-0.90, Si:1.60-2.00, Cr:≤0.35, P:≤0.03, S:≤0.03 | C:0.56-0.64, Mn:0.40-0.70, Si:1.40-1.80,Cr:0.70-1.00 P:≤0.03, S:≤0.03 | C:0.52-0.60, Mn:0.60-0.90, Si:1.50-2.00,Cr:≤0.35 P:≤0.03, S:≤0.03 | C:0.35-0.42, Mn:0.50-0.80, Si:1.50-1.80, P:≤0.03, S:≤0.03 |
Quality Control of Finished Elastic Rail Clips

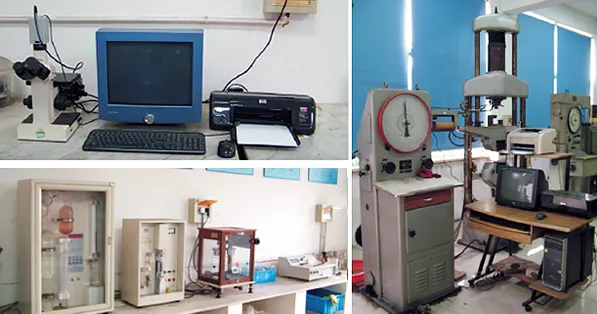

GNEE RAIL has strict test and completely authentication at every single step of manufacturing rail clips and a full set of quality control system, from raw material purchasing to the finished rail clip packing. We have a professional inspection team to check about each process of the production line.
As an OEM & OBM manufacturer, GNEE RAIL is capable of not only producing a wide range of internationally common types of rail clips, such as W Tension Clamp, e-Clip, Fast-Clip, SKL Tension Clamp, Nabla Blade, etc., but also customizing products tailored to our customers' specific requirements.
| Model | Diameter | Weight | Material |
| Type III | Ø18 | 0.80kg/pc | 60Si2MnA |
| E1609 | Ø16 | 0.43 kg/pc | 60Si2MnA |
| E1809 | Ø20 | 0.61kg/pc | 60Si2MnA |
| E1813 | Ø18 | 0.62kg/pc | 60Si2MnA |
| E2001 | Ø20 | 0.80kg/pc | 60Si2MnA |
| E2007 | Ø20 | 0.80kg/pc | 60Si2MnA |
| E2009 | Ø20 | 0.80kg/pc | 60Si2MnA |
| E2039 | Ø20 | 0.80kg/pc | 60Si2MnA |
| E2055 | Ø20 | 0.80kg/pc | 60Si2MnA |
| E2056 | Ø20 | 0.80kg/pc | 60Si2MnA |
| E2063 | Ø20 | 0.80kg/pc | 60Si2MnA |
| PR85 Rail Clip | Ø13 | 0.25kg/pc | 60Si2MnA |
| PR309A | Ø19 | 0.85kg/pc | 60Si2MnA |
| PR401 | Ø20 | 0.97kg/pc | 60Si2MnA |
| PR415 | Ø20 | 0.95kg/pc | 60Si2MnA |
| PR601A | Ø20 | 1.03kg/pc | 38Si7 |
| SKL 1 | Ø13 | 0.48kg/pc | 60Si2CrA |
| SKL 3 | Ø13 | 0.48kg/pc | 60Si2CrA |
| SKL 12 | Ø13 | 0.53kg/pc | 38Si7 |
| SKL 14 | Ø13 | 0.53kg/pc | 60Si2MnA |
| Special Rail Clip | Ø13 | 0.48kg/pc | 60Si2MnA |
| Russia Rail Clip | Ø18 | 0.58kg/pc | 60Si2MnA |
| Deenik Clip | Ø25 | 0.49-0.68kg/pc | 60Si2MnA |
| Single Anti- | Ø20 | 0.25kg/pc | 60Si2MnA |
| Theft |
