Choosing between U71Mn and U75V steel rails is not simply a matter of selecting the grade with higher strength or hardness. The right choice depends on the applicable rail standard, track operating conditions, wear and rolling contact fatigue requirements, and the specified delivery condition.
U71Mn is a widely used pearlitic rail steel grade for general railway applications. U75V has higher specified tensile strength and rail-head hardness in its hot-rolled condition, but these differences do not automatically make it the better choice for every project.
U71Mn vs U75V: What Are the Main Differences?
U71Mn and U75V are steel rail grades specified under the Chinese standard GB/T 2585. Their principal differences include chemical composition, minimum tensile strength, rail-head hardness, and the properties achieved in the specified delivery condition.
U75V contains vanadium as an alloying element and has higher specified minimum tensile strength and rail-head hardness than hot-rolled U71Mn under GB/T 2585-2021.
Mechanical Property Comparison
| Property | U71Mn | U75V |
|---|---|---|
| Applicable standard | GB/T 2585 | GB/T 2585 |
| Steel type | Pearlitic rail steel | Vanadium-alloyed pearlitic rail steel |
| Minimum tensile strength, hot-rolled condition | ≥ 880 MPa | ≥ 980 MPa |
| Rail-head hardness, hot-rolled condition | 260–300 HBW | 280–320 HBW |
| Minimum elongation | ≥ 10% | ≥ 10% |
| Main purchasing consideration | Balanced properties for specified general railway applications | Higher specified strength and hardness for projects requiring those properties |
Note: Values above refer to the hot-rolled, non-heat-treated condition under GB/T 2585-2021. Actual acceptance requirements must be confirmed against the applicable standard, rail classification, and purchase specification. U71MnH and U75VH are separate online heat-treated delivery grades with different mechanical property requirements.
What Do These Differences Mean for Buyers?
Higher tensile strength: U75V has a higher specified minimum tensile strength in the hot-rolled condition. This is a useful material specification difference, but it does not independently establish fatigue life or service life in track.
Higher rail-head hardness: U75V has a higher specified rail-head hardness range. This may be relevant where rail-head wear is an important design consideration, but hardness alone cannot predict wear performance under every wheel–rail contact condition.
Vanadium alloying: U75V contains vanadium, which contributes to its alloy design and microstructure. Its final properties still depend on steelmaking, rolling, cooling, and compliance with the specified manufacturing requirements.
Delivery condition matters: U71Mn is not interchangeable with U71MnH, and U75V is not interchangeable with U75VH. The suffix H identifies the online heat-treated grade. Always specify the complete grade and delivery condition when requesting a quotation.
Is U75V Worth Choosing Over U71Mn?
U75V may be worth considering when a project requires its higher specified strength and hardness, or when the engineering specification identifies it as the required grade. However, choosing U75V solely because its numbers are higher can lead to an unsuitable or unnecessarily expensive purchasing decision.
When U75V May Be Worth Considering
The project specification explicitly requires U75V.
The engineering design calls for the strength and hardness specified for U75V.
Rail-head wear is a significant concern and the grade has been evaluated for the actual wheel–rail contact conditions.
The project requires a particular material grade that must be documented in the mill test certificate.
When U71Mn May Be the More Appropriate Choice
The approved design or tender specification explicitly calls for U71Mn.
The required mechanical properties and service conditions are already satisfied by U71Mn.
The project has established acceptance criteria that do not permit an alternative grade without approval.
The procurement team wants to avoid an unapproved material substitution or unnecessary changes to welding and maintenance procedures.
Does U75V Always Have Better Wear Resistance?
No. Its higher specified hardness may provide an advantage in certain wear-dominated conditions, but actual wear performance depends on factors such as axle load, wheel profile, contact stress, lubrication, track curvature, and operating conditions.
Research comparing U71Mn and U75V has also reported differences in rolling contact fatigue behavior under tested conditions. A harder rail does not necessarily have better fatigue performance in every application.
The correct purchasing decision should therefore consider both rail-head wear and rolling contact fatigue, rather than treating hardness as the only selection criterion.
Can U75V Replace U71Mn?
U75V has higher specified tensile strength and rail-head hardness than hot-rolled U71Mn under GB/T 2585-2021. However, these differences alone do not establish that U75V can replace U71Mn in every railway application.
For general railway tracks: U75V is not automatically necessary if U71Mn already meets the specified requirements.
For tracks with high rail-head wear: U75V may be worth evaluating, but higher hardness alone does not guarantee better overall service performance.
For high-speed or heavy-haul railways: Grade selection must account for both wear resistance and rolling contact fatigue, as well as the applicable railway requirements.
The two grades should not be treated as universally interchangeable. Their suitability depends on the rail standard, delivery condition, and performance requirements of the specific application.
Which Track Conditions Favor U71Mn or U75V?
U71Mn and U75V are both pearlitic rail steels, but U75V has higher specified tensile strength and rail-head hardness in the hot-rolled condition under GB/T 2585-2021. The practical difference is whether the application benefits from those higher specified properties without compromising rolling contact fatigue performance.
| Track condition | U71Mn vs U75V | Practical choice |
|---|---|---|
| General railway service | U71Mn has lower specified strength and hardness; U75V provides higher specified values. | U71Mn can be sufficient where it meets the rail specification. Higher U75V properties are not, by themselves, a reason to upgrade. |
| High rail-head wear | U75V has a higher specified hardness range, which may be beneficial under some wear conditions. | Consider U75V when wear performance is a demonstrated requirement, but assess rolling contact fatigue as well. |

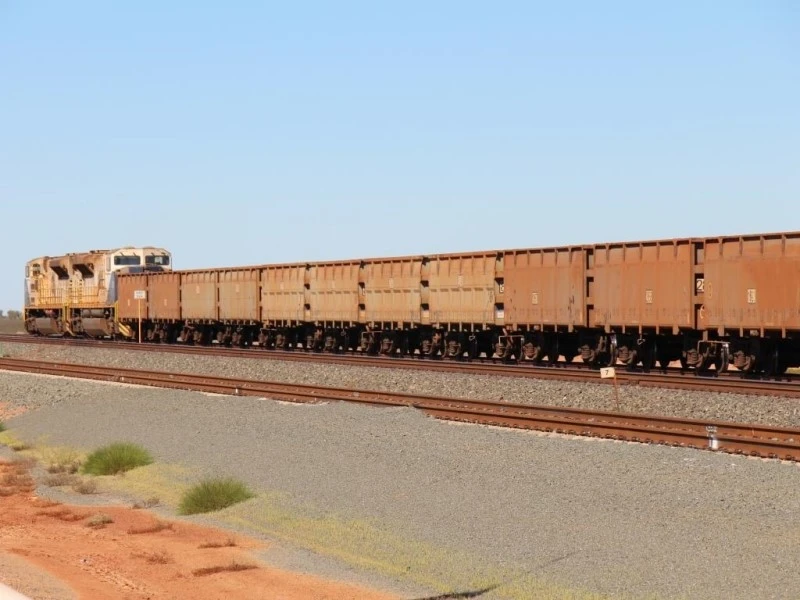

| Heavy-haul service | Higher strength and hardness do not automatically mean longer rail life under high axle loads. | Choose the grade qualified for the route's loading, wear, and fatigue requirements; do not select U75V on hardness alone. |
| High-speed service | Rail fatigue performance, steel cleanliness, dimensional quality, and manufacturing requirements are critical. | Follow the railway's specified grade and qualification requirements; U75V is not automatically superior to U71Mn. |
| Replacement of existing rails | A grade change can affect compliance with the original design and maintenance requirements. | Match the existing specified grade unless the project has established an acceptable alternative. |
Key takeaway: U75V offers higher specified strength and hardness, but this does not prove that it will last longer in every track condition. Choose it for a defined performance requirement-not simply because its grade designation or property values are higher.
Need U71Mn or U75V Rails for Your Project?
We supply steel rails according to the required rail grade, profile, length, quantity, applicable standard, and agreed inspection requirements.
Send us your project specifications so we can review the requested supply scope and prepare a quotation based on your requirements.
Rail Grades: U71Mn, U75V, and other specified grades, subject to availability and project requirements
Rail Specifications: Required profile, length, dimensions, and delivery condition
Quality Documentation: Material Test Certificates and agreed inspection records
Export Supply: Rail identification, bundling, packing, and shipment arrangements according to the order
FAQ
Q: Is U75V stronger than U71Mn?
A: Under GB/T 2585-2021, hot-rolled U75V has a specified minimum tensile strength of 980 MPa, compared with 880 MPa for hot-rolled U71Mn. The specified rail-head hardness range is also higher for U75V. These values describe the standard requirements and do not, by themselves, establish the service life of a rail in a particular application.
Q: Does U75V have better wear resistance than U71Mn?
A: Not necessarily under every operating condition. U75V's higher specified hardness may be advantageous in certain wear-dominated applications, but actual performance depends on wheel–rail contact conditions, track geometry, loading, and rolling contact fatigue behavior.
Q: Is U75V more expensive than U71Mn?
A: Pricing depends on the supplier, production conditions, rail profile, order quantity, delivery condition, inspection requirements, and market conditions. Request quotations for the same profile, length, quantity, and delivery requirements to make a meaningful comparison.
Q: Can I replace U71Mn with U75V without changing the rail profile?
A: The material grade and rail profile are separate specifications, so a grade change does not automatically change the profile. However, the substitution still requires confirmation that the proposed grade is permitted by the project specification and approved by the responsible authority where necessary.
Q: Is U75V suitable for heavy-haul railways?
A: It may be considered where its properties meet the project's requirements, but the grade should not be selected on axle load alone. Heavy-haul applications require consideration of wear, rolling contact fatigue, contact stress, rail profile, maintenance strategy, and the railway operator's approved specifications.
Q: What is the difference between U75V and U75VH?
A: U75V refers to the hot-rolled grade under GB/T 2585-2021, while U75VH identifies the corresponding online heat-treated grade. Their specified mechanical properties differ, so the purchase order must state the required grade and delivery condition explicitly.
Q: What information should I provide when requesting a rail quotation?
A: Provide the applicable standard, rail grade, rail profile or nominal mass per metre, required length, quantity, delivery condition, destination country, and inspection or documentation requirements. Drawings or project specifications are helpful when special dimensions or acceptance criteria apply.
Q: Which documents should accompany U71Mn or U75V rails?
A: The requirements depend on the purchase contract and applicable standard. Commonly required records include the material test certificate, chemical analysis, mechanical test results, and dimensional or surface inspection records. Heat-treatment and third-party inspection records should also be provided when specified.
