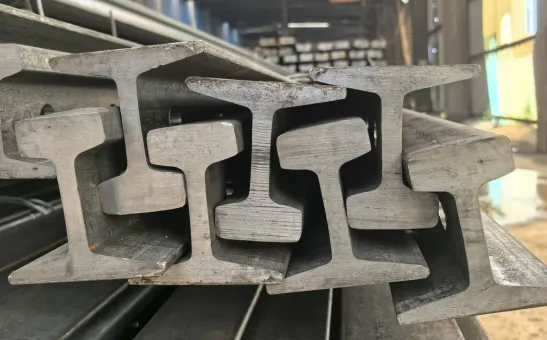

The rail asce 60 is a light-duty steel rail section manufactured according to American Society of Civil Engineers (ASCE) standards.A 60-pound rail may also be called a 60-pound rail, and its weight is 60 pounds per yard. The rail weight of 60 pounds per meter is 29.8kg, which is equivalent to 29.8kg/m. This rail type features a flat bottom design and is widely used for crane runways, industrial tracks, mining transport systems, and warehouse transfer cars. The material composition of asce 60 rail determines its mechanical properties, wear resistance, and suitability for different operating environments.

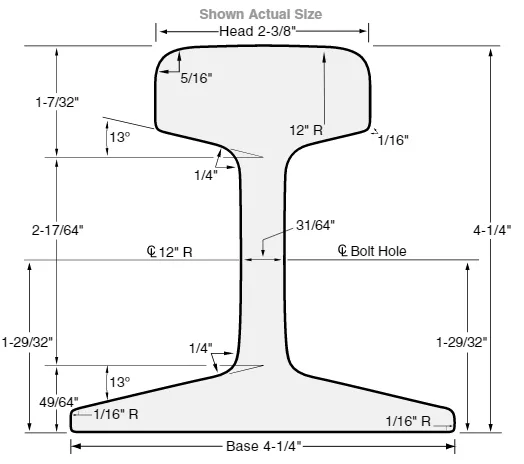

asce 60 rail dimensions:
| Product | ASCE60 Rail (60lb rail/60 pound rail) | ||||||
| Standard | ASTM/AREMA | ||||||
| Size | Dimension | Weight (kg/m) | Material | Length (m) | |||
| Head (mm) | Height (mm) | Base (mm) | Web (mm) | ||||
| ASCE60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 | 700 | 6-12 |
In addition to 60 lb rails, GNEE RAIL also offers 100 lb/yd and more American Standard heavy duty and crane rails, 115 lb rails and 136 lb rails for sale.
What is rail asce 60 made of?
The 60 lb asce rail is typically manufactured using three primary steel grades: Q235B, 55Q, and U71Mn . Each grade offers distinct mechanical properties.
55Q is a higher-strength carbon steel grade specifically formulated for rail applications requiring enhanced load-bearing capacity and wear resistance. This material is commonly used for asce 60 rail in applications involving frequent crane movements, heavier wheel loads, or more demanding operating conditions .
| 55Q | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | ≤ | ≤ | ||||
| ≥ | ≥ | ≥ | ≥ | ≥ | |||||||
| 685 | 69 | 197 | 0.50-0.60 | 0.15-0.35 | 0.60-0.90 | 0.04 | 0.04 | ||||
Q235B is a standard carbon structural steel commonly used for asce 60 rail in general industrial applications. This material grade offers a balanced combination of strength, weldability, and cost-effectiveness, making it the most widely specified option for light to medium-duty track systems.
| Q235B | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| ≥ | ≥ | ||||||||||
| 235 | 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.35 | 0.30-0.70 | 0.045 | 0.045 | ||
U71Mn is a premium rail steel grade containing manganese as an alloying element to enhance hardness, wear resistance, and fatigue strength. This material is typically specified for asce 60 rail in the most demanding applications, including high-cycle crane operations, ports, and heavy industrial environments where extended service life is critical .
| Mechanical Property | Chemical Composition (%) | |||||||||||||
| U71Mn | Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | Cr | Ni | Cu | ||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | |||||||||
| ≥390 | ≥40 | ≥880 | 9% | 0.65-0.76 | 0.15-0.35 | 1.10-1.40 | ≤0.030 | ≤0.030 | ≤0.250 | ≤0.250 | ≤0.250 | |||
The asce 60 rail dimensions remain consistent across all material grades, with rail height of 107.95 mm and base width of 107.95 mm . However, the mechanical properties vary significantly based on the selected steel grade.
Frequently Asked Questions (FAQ)
1. How do I choose the right material grade for my ASCE 60 rail project?
Consider three factors: wheel load, operating frequency, and environmental conditions. For light-duty cranes used occasionally, Q235B provides adequate strength. For daily crane operations with moderate loads, 55Q offers better durability. For high-cycle applications or abrasive environments, U71Mn delivers the longest service life. All grades maintain the same asce 60 rail dimensions and 60 lbs rail weight per meter.
2. What is the difference between Q235B and 55Q for ASCE 60 rail?
The primary difference is strength and carbon content. Q235B has a yield strength of 235 MPa and carbon content of 0.12-0.22%, making it easier to weld. 55Q has a yield strength of 685 MPa and carbon content of 0.50-0.60%, providing approximately three times the strength and significantly better wear resistance. Both meet the asce 60 rail dimensions and 60 lbs rail weight per meter specifications.
3. How does material grade affect the hardness of ASCE 60 rail?
Hardness increases with higher carbon and manganese content. Q235B typically measures ~197 HB, 55Q measures ~280 HB, and U71Mn measures ~320 HB. Higher hardness provides better resistance to wheel wear but may reduce weldability. For applications requiring maximum wear resistance, U71Mn asce 60 rail offers the highest hardness while maintaining the same asce 60 rail dimensions.
4. Is ASCE 60 rail available with corrosion-resistant treatment?
Yes, asce 60 rail can be supplied with various surface treatments including anti-rust coatings, hot-dip galvanization, or specialized protective oils. These treatments protect the asce 60 rail dimensions from corrosion damage in marine environments or high-humidity conditions. GNEE RAIL offers surface treatment options to extend the service life of your 60 lb asce rail in challenging environments.
GNEE RAIL produces asce 60 rail and other industrial rail sections with strict control of rolling precision and material composition. We maintain accurate asce 60 rail dimensions across all production batches, ensuring stable load distribution and reliable track performance. Our manufacturing process consistently delivers the specified 60 lbs rail weight per meter, supporting accurate structural calculations and foundation design.
With flexible production and processing capabilities, we help meet different project requirements. We can supply 60 lb asce rail in multiple material grades-Q235B, 55Q, and U71Mn-allowing you to select the optimal balance of strength, wear resistance, and cost for your specific application. Our quality control team verifies the chemical composition and mechanical properties of every section against the asce 60 rail dimensions before shipment.
If you need technical details or application support, you can contact us to get rail asce 60 solutions. We will provide the right material options based on your project conditions, from wheel load calculations to environmental exposure considerations and delivery scheduling.
