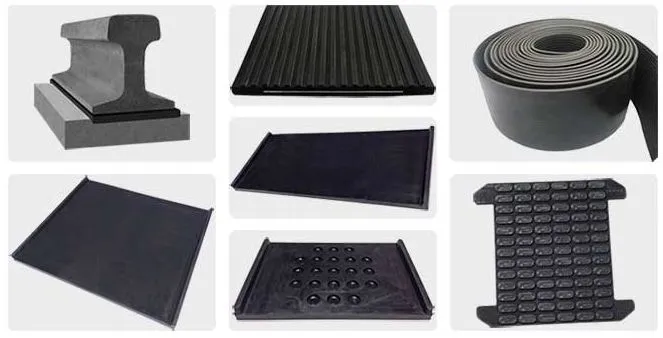

GNEE RAIL produces a wide range of railway rubber pads for rail fastening systems, using high-quality materials such as natural and synthetic rubber, EVA, HDPE, and high-density polyurethane. We offer both grooved pads and studded rail pads, suitable for various rail types, sleepers, and fastening systems.
| Technical Parameter | Unit | Value |
| Stiffness | KN | 90-130 |
| Hardness Shore A | ℃ | 72-80 degree |
| Electronic Resistance | Ω | ≥ 106 |
| Tensile Strength before Aging | Mpa | ≥12.5 |
| Elongation before Aging | % | ≥250 |
| EVA: Polyethylene 80%, Vinyl Acetate 20%. | |||
| Technical Parameter | Unit | Technical Requirement | Value |
| Density | g/cm3 | 0.95-0.98 | 0.95 |
| Tensile Strength | Mpa | ≥15 | 16 |
| Elongation | % | >500 | 550 |
| Melting Point | ℃ | 170-190 | 170 |
| Insulation Resistance | Ω | ≥1×1010 | 5.0 ×1010 |
| Hardness | A | ≥90 | 92(A) |
| Technical Parameter | Unit | Technical Requirement | Value |
| Density | g/cm3 | 0.95-0.98 | 0.95 |
| Tensile Strength | Mpa | ≥19 | 19 |
| Elongation | % | >80 | 150 |
| Melting Point | ℃ | 170-190 | 190 |
| Insulation Resistance | Ω | ≥1×1010 | 3.5 ×1010 |
| Hardness | A | ≥98 | 98(A) |
Different railway applications may require specific material combinations to meet performance standards, including elasticity, vibration damping, noise reduction, and durability. Fillers such as granular rubber or polymer fibers are often added to improve the strength and stability of the pads.

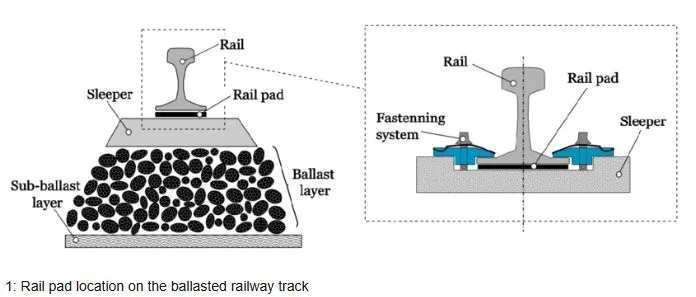

The bottom of each pad includes a metal component, usually made of steel or alloys, providing structural support and ensuring secure connection to rails, base plates, and rail clips. With the right combination of materials and design, GNEE RAIL's rubber pads enhance the stability, safety, and lifespan of railway tracks and crane rail fastening systems.

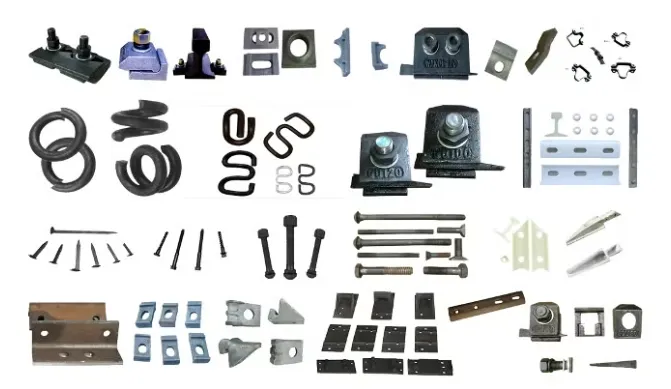

We also manufacture kinds of Railway Screw Spike, Clip and Clamp, High Tensile Bolt with Nut and Washer, Rail Base(Tie) Plate, Rail Fish Plate, Rail Shoulder, Rail Screw and Spike, Fish Bolt with Nut and Washer, Rail Dowel, Crane Rail and Light Rail and Other rail fasteners parts.
