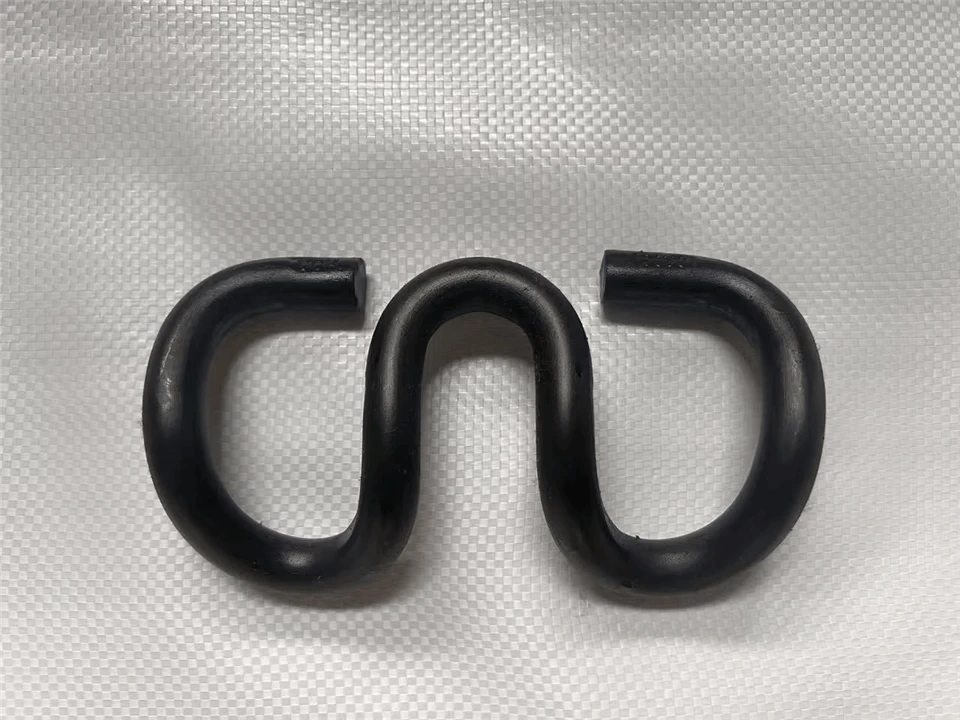

↵Rail skl clip Fastening System
The SKL Clip is a type of high-precision railway fastening clip, renowned for its application in modern high-speed and slab track systems. As a variant of the elastic rail clip (E-clip), it is characterized by its specific "SKL" designation, originating from German engineering standards (originally developed for the "Städtebahn- schnellbahn- Länderbahn" network). Manufactured from high-grade spring steel, it clamps the rail foot onto a shoulder of a concrete sleeper or a specially designed baseplate in slab tracks.
Technical Specifications:
| Aspect | Railway SKL Clip | Generic Railway E-Clip | ||
|---|---|---|---|---|
| Primary Design Focus | Precision, consistency, and high-fatigue performance | Robust clamping, cost-effectiveness, and versatility | ||
| Typical Installation | Torque wrench (controlled torque application) | Hammer strike or simple hydraulic press | ||
| Force Calibration | Precisely calibrated and verified during production | Less strictly calibrated; relies more on design geometry | ||
| Common Track Application | High-speed rail, slab tracks, urban metro systems | Conventional ballasted tracks, freight lines, industrial sidings | ||
| System Integration | Part of a tightly engineered "closed" fastening system | Often used in more modular or "open" fastening systems |
Functional & Engineering Perspective
Calibrated Clamping Force: Engineered to deliver a precise and consistent toe load, which is critical for preventing rail creep and maintaining electrical continuity in electrified tracks.
Superior Fatigue Resistance: Its material composition and manufacturing process are optimized for the high-cycle loading of high-speed operations, significantly reducing the risk of sudden brittle fracture.
Minimal Relaxation: Exhibits low levels of long-term clamping force loss (relaxation) due to material quality and design, ensuring enduring performance without frequent retightening.
Maintenance & Operational Perspective
- Higher Initial Cost: The clip itself and its required installation tools represent a higher capital investment compared to simpler fastening systems.
- Lifecycle Value: The extended service life, reliability, and reduced maintenance needs offer a favorable total cost of ownership for high-traffic or high-speed lines.
- Designed for Automation: Its standardized design is conducive to automated installation machines, which can improve efficiency in large-scale new track construction.
Gnee Professional supplier
