60 lb rail, also known as ASCE 60 rail, is a light-duty steel rail defined by the American Society of Civil Engineers (ASCE) standard. It weighs approximately 60 pounds per yard (29.8 kg/m) and is widely used in light rail transit, industrial tracks, mining railways, and crane systems across North America and other regions . The rail features a flat-bottom design with specific dimensional standards governed by ASTM A1, ensuring compatibility with standard fastening systems and reliable performance in light to medium-load applications .
GNEE RAIL produces ASCE 60 rail with strict control over rolling precision and dimensional consistency. Our manufacturing process incorporates continuous monitoring to maintain tolerances within industry standards, ensuring each rail meets the specified dimensions reliably. With integrated production capabilities from steelmaking to final finishing, we deliver ASCE 60 lb rail that performs predictably in track installations and maintains alignment stability over extended service periods.
Standard Dimensions of 60 lb ASCE Rail
The standard dimensions for 60 lb ASCE rail are clearly defined under the ASTM A1 specification,the key dimensional parameters are as follows：

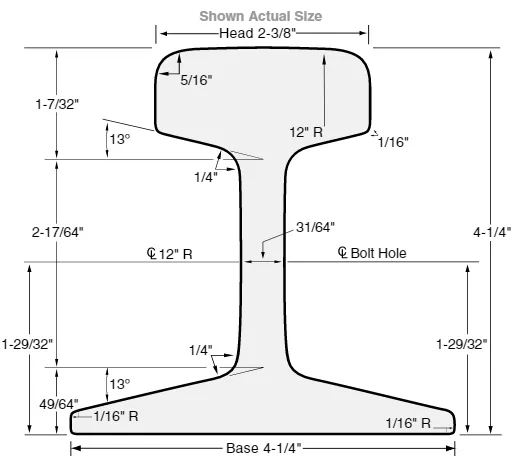

asce 60 rail dimensions：
| Size | Head (mm) | Height (mm) | Base (mm) | Web (mm) | Nominal weight (kg/m) | Material | Length (m) |
|---|---|---|---|---|---|---|---|
| ASCE 25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 | 700 | 6-12 |
| ASCE 30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 | 700 | 6-12 |
| ASCE 40 | 47.62 | 88.9 | 88.9 | 9.92 | 19.84 | 700 | 6-12 |
| ASCE 50 | 54 | 98.4 | 98.4 | 11.11 | 24.855 | 700 | 6-12 |
| ASCE 60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 | 700 | 6-12 |
| ASCE 75 | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | 900A/1100 | 12-25 |
| ASCE 85 | 65.09 | 131.76 | 131.76 | 14.29 | 42.17 | 900A/1100 | 12-25 |
What is the acceptable tolerance for 60 lbs rail dimensions in mm?
The acceptable tolerance for 60 lbs/yd (ASCE 60) rail dimensions, based on standard specifications like IS:3443, typically includes a height tolerance of ±0.80 mm to ±1.0 mm and base width tolerances around +0.80/ −0.40 mm. Head width and web thickness are generally allowed a tolerance of roughly ±0.80 mm to +0.80/ −0.40 mm, depending on the standard applied.
Key Dimension Tolerances (ASCE 60 / 60 lb/yd):
- Rail Height (approx. 107.95 mm): ±0.80 mm to ±1.0 mm.
- Base Width (approx. 107.95 mm): +0.80 mm / −0.40 mm.
- Head Width (approx. 60.32 mm): +0.80 mm / −0.40 mm.
- Web Thickness: ±0.80 mm.
- Mass per Meter: +3% / −2%.
Frequently Asked Questions (FAQ)
Q1: What is the standard length of 60 lb ASCE rail?
Standard lengths for 60 lb ASCE rail typically range from 6 to 12 meters (20 to 40 feet). Common lengths include 20 feet, 30 feet, 33 feet, and 40 feet (approximately 6.1 m, 9.1 m, 10 m, and 12.2 m). Custom lengths can be arranged for specific project requirements .
Q2: What steel grades are available for 60 lb rail?
60 lb rail is commonly produced in Q235B, 55Q, and U71Mn grades. Q235B offers good weldability and is suitable for general applications. 55Q provides higher tensile strength and wear resistance, making it suitable for heavier-duty industrial applications. Material selection should be based on the specific operating conditions and load requirements .
Q3: Can 60 lb rail be used for crane runways?
Yes, 60 lb ASCE rail is widely used for crane runways, particularly for overhead cranes, gantry cranes, and material handling equipment with load capacities between 5 and 15 tons. It is well-suited for light to medium-duty industrial applications where smooth trolley movement and reliable load support are required .
Q4: How does 60 lb rail compare to UIC54 rail?
60 lb rail (ASCE standard) and UIC54 rail (European standard) are different rail profiles. 60 lb rail weighs approximately 29.8 kg/m and is commonly used in North American light rail and industrial applications. UIC54 rail weighs 54 kg/m and is used in European and Asian mainline railways. They are not interchangeable due to differences in profile geometry, base width, and fastening system compatibility.
Q6: What fastening systems work with 60 lb rail?
60 lb ASCE rail is compatible with standard rail clips, spikes, and bolt systems designed for ASCE profile rails. Common fasteners include tie plates with rail anchors, clip systems with elastic fasteners, and direct bolt-down configurations for crane rail applications. The 107.95 mm base width matches standard ASCE rail seats, ensuring secure attachment .
GNEE RAIL produces ASCE 60 rail with precision rolling control, ensuring dimensional accuracy across all production batches. We maintain strict quality oversight from steelmaking to final inspection, delivering rails that meet ASTM A1 specifications with verified tolerances. If you have specific length or processing requirements, contact us to discuss your project needs-our technical team will provide tailored solutions based on your operating conditions.
