What are the standard uic54 rail dimensions?

UIC54 rail is a standard heavy rail profile defined by UIC 860, widely used in railway construction for its balanced strength, durability, and cost-efficiency. It is designed to support both passenger and freight traffic with stable performance under medium to heavy axle loads. At GNEE RAIL, UIC54 rails are produced with controlled rolling precision and strict adherence to international standards, ensuring reliable geometry, consistent mechanical properties, and efficient project integration.

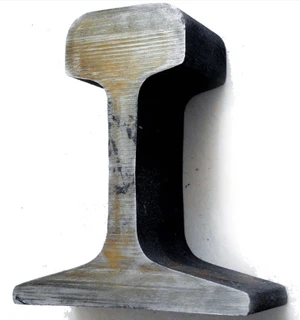

The UIC54 rail profile has well-defined geometric parameters that determine its mechanical behavior and compatibility with fastening systems.

uic54 rail specification:

These dimensions ensure an optimal balance between bending resistance and material consumption. The wider foot improves load distribution onto sleepers, while the head profile enhances wear resistance and wheel-rail contact stability.

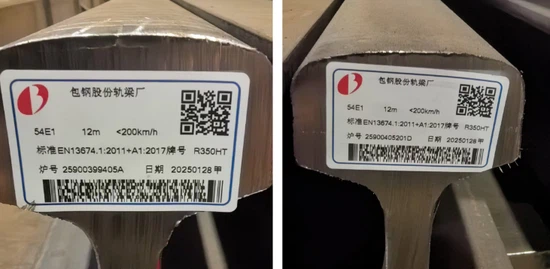

If you have special requirements for the length or steel grade of 54E1 rail, please contact us.

What Tolerances Apply to UIC54 Rail Dimensions?

UIC standards define allowable tolerances for each dimension to ensure consistency during manufacturing and installation. These tolerances typically cover:

• Height and width deviations within ±0.5–1.0 mm



• Straightness and flatness requirements



• Weight deviation per meter within controlled limits

Precision in these tolerances directly affects track alignment, fastening performance, and long-term maintenance costs. Advanced rolling and inspection processes are required to maintain these strict limits.

How to select the appropriate steel grade for 54E1 rail?

Selecting the appropriate steel grade for 54E1 (UIC54) rail involves balancing axle loads, traffic speed, and curvature, primarily using high-strength carbon manganese steel (880–1080 MPa) compliant with EN 13674-1. For high-traffic/heavy-haul lines, choose head-hardened (HH) steel (300-360 HB); for lower-demand lines, standard carbon steel is suitable.

Key Factors for Selection:

• Load and Speed: For heavy-haul (25-30+ tons/axle) and high-speed, select head-hardened (HH) or heat-treated steel to prevent wear and Rolling Contact Fatigue (RCF).

• Track Geography: In sharp curves or areas with large slopes, heat-treated high-strength rail is required for greater wear resistance.

• Environmental Conditions: In tunnels, coastal (high humidity/corrosion), or polluted areas, consider special chromium or microalloyed steels (containing vanadium or niobium) to improve corrosion resistance and toughness.

• Budget and Life Cycle: While heat-treated rails have a higher initial cost, they provide up to 30% longer service life in high-traffic scenarios.

Commonly Used Grades (EN 13674-1 / UIC 860):

• R260 / R260Mn: Standard carbon grade for general, moderate-traffic, or straight lines.

• R320Cr / R350HT / R350LHT: Head-hardened/heat-treated grades for increased wear resistance on curves and heavy freight lines.

GNEE RAIL produces UIC54 rails with stable rolling lines, ensuring precise dimensions and consistent weight across each batch. We support multiple steel grades such as R260 and R350HT, with flexible rail lengths based on project requirements. Strict quality inspection is applied from raw material to final delivery, helping reduce installation issues and rework on site. For buyers, this means more reliable supply, controlled cost, and easier project execution. If you need detailed specifications, drawings, or pricing, you can contact us to get UIC54 rail data and project support, and our team will provide matching solutions based on your application.
