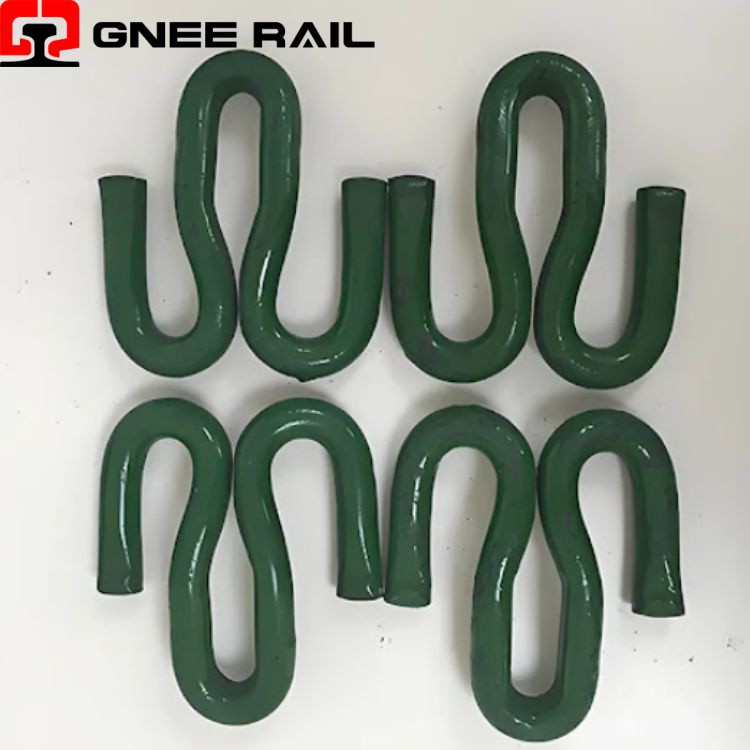

Rail Fast Clip Fastening System
The Railway Fast Clip is a precision-engineered rail fastening component designed to securely attach rails to underlying sleepers or ties in track systems. Manufactured from high-grade spring steel, this elastic clip maintains consistent clamping force under dynamic loads, ensuring gauge retention and longitudinal restraint while absorbing vibrations from passing trains. Its innovative geometry allows for quick installation and removal using simple tools, significantly reducing maintenance time compared to traditional bolted connections.
Technical Specifications:
| Parameter | FC1306 | FC1504 | FC1504 Heavy Haul | FE Heavy Haul | ZLR Configuration |
|---|---|---|---|---|---|
| Clamping Force (Toe Load) | 3 ± 0.5 kN | 10 ± 1.0 kN | >16 kN | >20 kN | Variable/Low |
| Longitudinal Restraint | >4 kN | >7 kN | >9 kN | >12 kN | Near-Zero |
| Spring Travel | ≥7 mm | ≥10 mm | ≥10 mm | ≥12 mm | Application-Specific |
| Vertical Stiffness (with pad) | 10–20 kN/mm | 25–35 kN/mm | 40–60 kN/mm | 50–70 kN/mm | 15–25 kN/mm |
| Insulation Resistance | >5 kΩ | >5 kΩ | >5 kΩ | >5 kΩ | >5 kΩ |
| Material Grade | 60Si2MnA | 60Si2CrA | 60Si2CrA | 60Si2CrVA | Various |
| Hardness (HRC) | 42–47 | 42–47 | 44–48 | 44–48 | 42–47 |
Installation & Maintenance Perspective:
- Dual-piece insulators enable independent rail movement while maintaining ≥5 kΩ isolation .
- PA66+30%GF insulators: ≥170 MPa tensile, ≥250 MPa bending, ≥80 KJ/m² impact .
- Cast-in shoulders with plastic seal plates extend mold life 30–50% .
- Gauge adjustment -8mm to +4mm through simple insulator replacement (2–8mm increments) .
- Tethered component retention prevents loss during stress application and maintenance .
Maintenance & Operational Perspective
- Cast-In Shoulder Integration: Embedded shoulders are cast directly into concrete sleepers during manufacturing, with plastic seal plates preventing slurry leakage during casting and extending mold lifespan by 30–50% by minimizing steel-to-iron contact .
- Gauge Adjustment Flexibility: Rail gauge can be adjusted from -8 mm to +4 mm simply by swapping insulators of different thicknesses (2–8 mm in 1 mm increments), eliminating the need for tie plate movement or shim adjustments .
- Tethered Component Retention: During rail stress application or maintenance, all components remain attached to the sleeper in a tethered state, preventing loss and simplifying logistics-a critical feature for night work and tunnel operations where dropped components are difficult to recover .
