Can DIN S20 Rail be interchanged with GB 22KG Rail?
No, DIN S20 Rail and GB 22KG Rail cannot be directly interchanged. While their theoretical weights per meter are relatively close (19.8 kg/m vs. 22.3 kg/m), they belong to entirely different standard systems (German DIN 5901 vs. Chinese GB/T 11264) and feature completely incompatible cross-sectional geometries.
Dimensional Comparison Breakdown
Mixing or interchanging these two profiles within the same track run or utilizing the same structural fixing components creates severe mechanical alignment failures:
| Dimensional Parameter | DIN 5901 S20 Rail | GB 22KG Light Rail | Engineering Incompatibility |
| Theoretical Mass | 19.8 kg/m | 22.3 kg/m | GB 22KG is ~12.6% heavier per meter. |
| Total Rail Height | 100 mm | 93.66 mm | A 6.34 mm height step-hazard occurs at joints, causing extreme wheel slam and potential derailment. |
| Base Width | 82 mm | 93.66 mm | A 11.66 mm variance. Standard fixed rail clips, sole plates, or rubber pads designed for S20 will not fit the wider GB 22KG base. |
| Head Width | 44 mm | 50.80 mm | GB 22KG features a wider head. Crane wheels or guide rollers aligned for a 44 mm running path will experience severe flange climbing or high friction. |
| Web Thickness | 10 mm | 10.72 mm | Close in value, but creates internal dimension shifts for standard fishplates. |
Correct Engineering Action
- For New Layouts: Standardize on one framework. Choose S20 if your project follows European processing norms, standard DIN logistics, or metric component constraints. Choose GB 22KG if your sourcing requires standard Chinese domestic light track assemblies.
- For Existing Track Extensions: If replacing broken segments or expanding an existing track, you must stick exactly to the original profile. If you absolutely must couple an S20 section to a GB 22KG run, a custom-machined, stepped compromise joint (cranked fishplate) or specialized transition welding is mandatory to level out the 6.34 mm vertical step and 11.66 mm base difference.
What are the advantages of adopting S20 Railway Steel Rail?

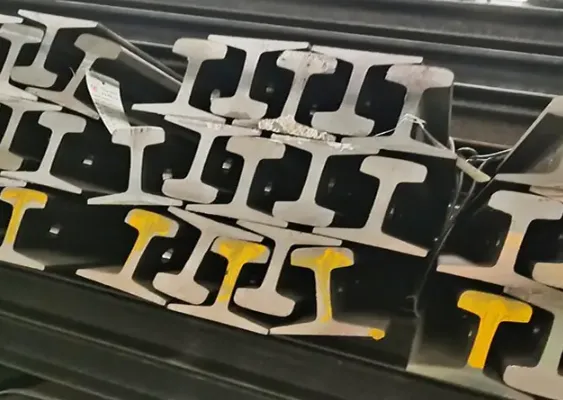

S20 railway steel rail (DIN 5901 standard, 19.8 kg/m) is optimal for medium-duty industrial applications, such as factory transport systems, cranes, and mining haulage. Its adoption provides cost-effective durability, straightforward installation, and reliable performance.
- Optimal Load-Bearing Capacity: Weighing roughly 19.8 kg/m, the S20 rail provides structural stability and weight capacity. It easily supports medium-load transport-like factory transfer carts and overhead cranes-without the bulk of heavy railway rails.
- Durable Material Composition: Available in durable steel grades like Q235B or 55Q (high-carbon steel), the S20 rail offers excellent tensile strength, wear resistance, and resistance to deformation under constant rolling stress.
| Q235B | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HB | ≤ | ≤ | ≤ | |||
| ≥ | ≥ | ||||||||||
| 235 | 24 | 375-460 | 38-47 | 26% | 0.12-0.22 | 0.35 | 0.30-0.70 | 0.045 | 0.045 | ||
| 55Q | Mechanical property | Chemical composition(%) | |||||||||
| Yield strength | Tensile strength | Elongation | Hardness | C | Si | Mn | S | P | |||
| MPa | kg/mm² | MPa | kg/mm² | min | HBW | ≤ | ≤ | ||||
| ≥ | ≥ | ≥ | ≥ | ≥ | |||||||
| 685 | 69 | 197 | 0.50-0.60 | 0.15-0.35 | 0.60-0.90 | 0.04 | 0.04 | ||||
- Standardized Geometry: Manufactured in strict compliance with the DIN 5901 European standard, the S20 profile ensures consistency. This uniformity provides a precise fit with standard fastening systems (e.g., fishplates and clamps), simplifying track assembly and maintenance.
- Versatility: The S20 rail is highly adaptable, functioning reliably whether installed on reinforced concrete floors, steel beams, or timber ties. It performs well in demanding environments, including underground mine tunnels and outdoor construction sites.
- Cost-Effectiveness: Its medium weight limits material costs compared to heavy railway alternatives, making it an affordable choice for private and commercial logistics networks.
FAQ
- Can I use standard S20 fishplates to connect an S20 profile to a GB 22kg rail?
No, standard S20 joint bars cannot be used because the total height and fishing angles of the two profiles are completely mismatched. Forcing a standard fishplate onto these differing webs results in poor bolt clamping, severe joint shifting, and structural cracking under passing wheel loads.
- What is the exact height difference between a DIN S20 rail and a Chinese 22kg rail?
The exact height difference between the two track profiles is 6.34 mm, with the DIN 5901 S20 rail standing taller at 100.00 mm compared to the GB 22kg rail height of 93.66 mm. This vertical gap requires specialized compromise joint bars to keep the top running surfaces perfectly level.
- Why does the difference in head width matter for S20 light rail systems wheel tracking?
The S20 profile has a 44.00 mm head width, while the GB 22kg rail head is 50.80 mm wide, creating a 6.80 mm total lateral step. If interchanged directly, this step forces vehicle wheel flanges to strike the exposed steel edge, causing rapid wheel wear and severe derailment risks.
- Are the base clip requirements identical for Din Standard S20 Steel Rail and GB 22kg tracks?
No, the fastening requirements differ completely because the GB 22kg rail features a much wider base width of 93.66 mm compared to the 82.00 mm base of the S Type Rail. Using S20 clips on a GB rail prevents proper clamping force, which can lead to rapid track gauge widening.
- How does the linear mass of an S20 mining rail profile compare to the GB 22kg standard?
The DIN 5901 S20 rail features a true calculated linear mass of 19.80 kg/m, which is lighter than the GB 22kg rail profile mass of 22.30 kg/m. The heavier mass of the GB track is distributed into its broader head and extra-wide base footprint, altering its total structural load characteristics.
